The Automatic Sand Patch Tester manufactured by our company offers performance comparable to imported products and fully meets the requirements of pavement texture testing. It features simple operation and convenient use, while reducing errors caused by human factors. It is an ideal testing instrument for evaluating pavement macrotexture and skid resistance performance.

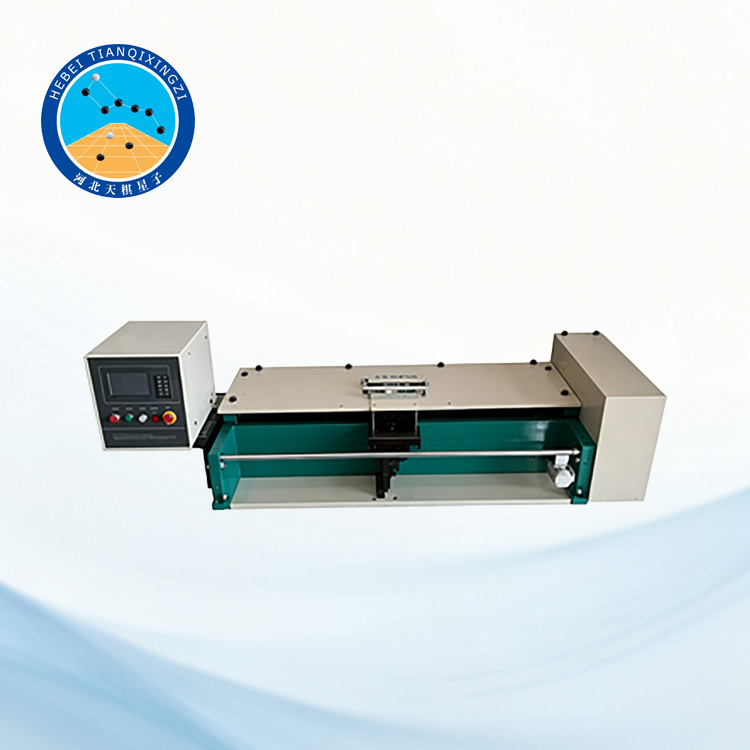

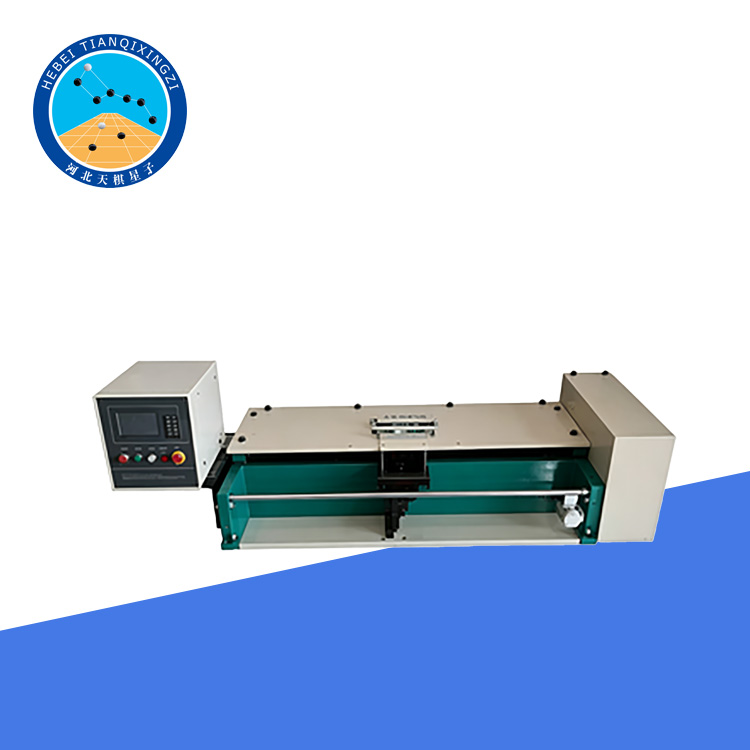

Automatic Sand Patch Tester | Pavement Texture Depth

Model:TD962-2

I. Product Overview

The Automatic Sand Patch Tester is developed and manufactured by Hebei Tianqixingzi Inspection Equipment Co., Ltd. in accordance with the industry standard JTG E60-2008 Field Test Methods of Highway Subgrade and Pavement (T0962-1995 Test Method for Measuring Pavement Texture Depth Using an Electric Sand Patch Tester), with reference to ASTM E965 and EN 13036-1.

II. Instrument Structure

The Automatic Sand Patch Tester consists of a hopper, frame, measuring scale, micro motor, and control unit. Standard accessories include a calibration glass plate, standard sand volume cylinder, brush, and other accessories.

III. Main Technical Parameters

1. Sand hopper capacity: approximately 70 mL. The width of the lower opening of the sand hopper is 2.7 mm. The sand spreading strip size is 50 mm in width and 4 mm in thickness.

2. Sand hopper moving speed: approximately 15 mm/s.

3. Sand hopper moving range: approximately 290 mm.

4. Overall dimensions: 470 × 160 × 140 mm.

5. DC motor power supply: 12 V, 3.3 A.

IV. Operating Precautions

1. Since the instrument is relatively delicate and most of the transmission components are exposed, the device must be kept clean at all times. In particular, the lead screw and guide rod should be kept free from dust and contaminants. Handle the instrument carefully during operation.

2. Avoid using the instrument outdoors in windy or sandy weather conditions whenever possible.

3. When filling the sand hopper with sand, pour the sand evenly and uniformly.

4. After each use, clean the instrument immediately and store it in the dedicated wooden case.

5. If the positive and negative poles of the power supply are connected incorrectly, correct the connection immediately.

V. Packing List

1. One Automatic Sand Patch Tester

2. One flat glass plate, 450 × 250 × 5 mm (for calibration)

3. One sand measuring cylinder (capacity: 50 mL)

4. One short straightedge

5. small brush

6. One battery: 12 V, 4 Ah

7. One fast battery charger: 220 V / 12 V

VI. Product Features

1. Automatic Sand Spreading

The instrument adopts an electric drive system to automatically control the sand spreading process, ensuring uniform and stable sand distribution.

2. High Testing Accuracy

The controlled movement speed and standardized sand spreading process effectively reduce human operation errors and improve test repeatability.

3. Easy Operation

The compact structure and simple control method allow operators to complete pavement texture depth tests quickly and efficiently.

4. Portable Design

The instrument features a lightweight and compact structure, making it convenient for field testing and transportation.

5. Standard Compliance

The tester is designed according to JTG E60-2008 requirements and references ASTM E965 and EN 13036-1 standards, ensuring reliable testing performance.
