This Xenon Arc Weathering Test Chamber offers multiple cycle programs, black panel temperature settings, and chamber air temperature and humidity conditions for selection, enabling programmed simulation of different environmental conditions. During exposure testing, the temperature is automatically calculated and controlled by a microcomputer-based intelligent temperature controller featuring PID self-tuning and a membrane keypad, ensuring simple, convenient, and efficient operation.

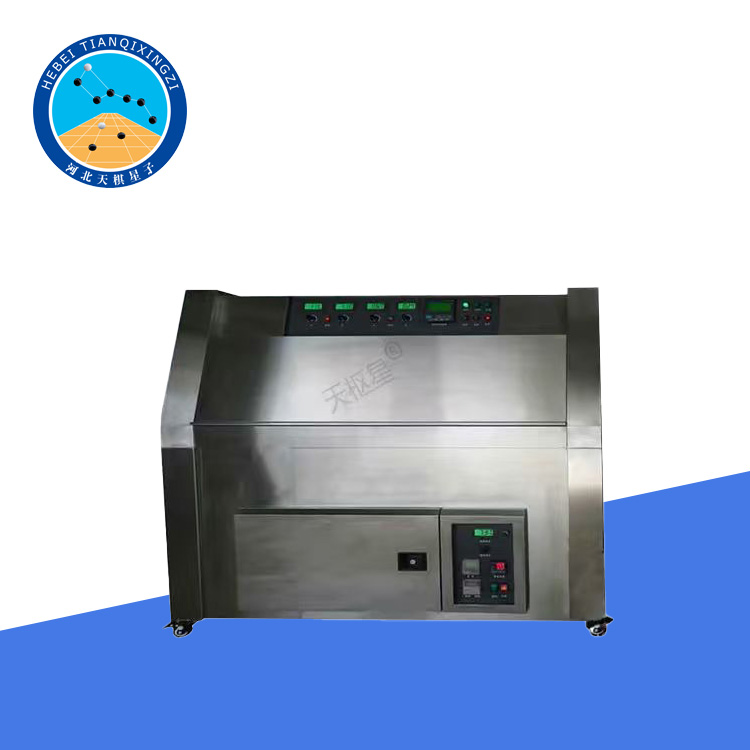

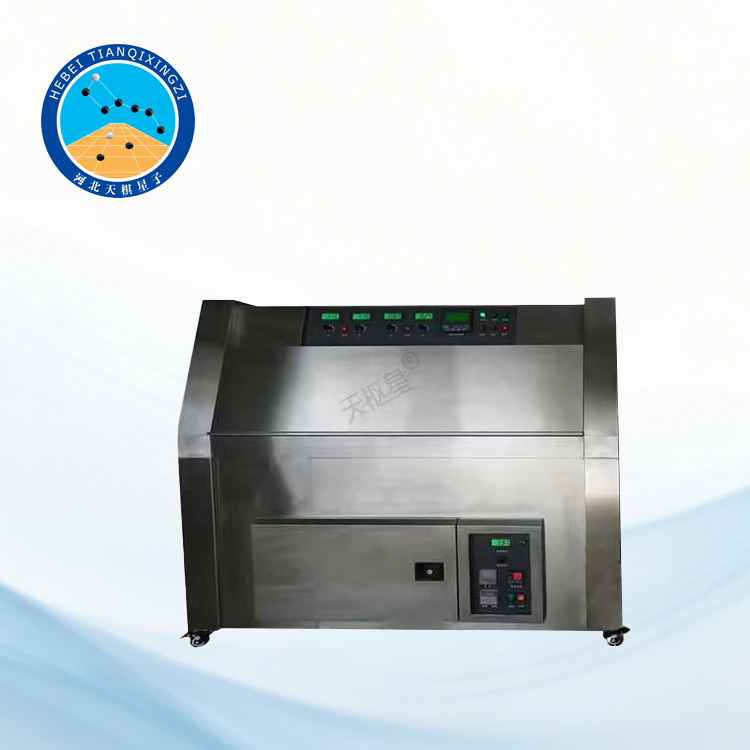

Xenon Arc Weathering Tester

Model: TD1163-2

I. Structural Design

The equipment mainly consists of the main body, heating and humidification system, refrigeration and dehumidification system, display and control system, air circulation system, safety protection system, and other accessories.

The equipment features a specially designed specimen rack tray for convenient operation. The tray is inclined at 10° to the horizontal plane and can accommodate flat specimens or three-dimensional samples of different shapes and sizes, such as parts, components, bottles, and test tubes. The tray can also be used for testing materials that may flow under high-temperature conditions, materials exposed in Petri dishes, and waterproofing materials used on roofs.

The outer casing is manufactured from high-quality A3 steel plate using CNC machining and is finished with a powder-coated surface. The inner chamber is made of imported SUS304 high-quality stainless steel. The air circulation system adopts a long-shaft fan motor and a high- and low-temperature-resistant stainless-steel multi-blade impeller to achieve strong forced convection and vertical circulating airflow.

A double-layer high-temperature-resistant, high-tensile sealing strip is installed between the door and chamber to ensure effective sealing of the test area. The equipment features a non-reaction door handle for easy operation. High-quality lockable PU casters are installed at the bottom, allowing the equipment to be easily moved to the desired location and securely fixed in place after installation.

The equipment is also equipped with a visual observation window made of multi-layer hollow tempered glass, providing a clear view of the test process during operation.

II. Applicable Standards

This product is designed and manufactured in strict accordance with the technical requirements of GB/T 16422.2-1999. It also complies with the requirements of GB/T 2423.24-1995, ASTM G155, ISO 105-B02/B04, SAE J2527, SAE J2421, and other relevant standards.

III. Detailed Specifications

1. Model: TD1163-2 Unit: mm

2. Chamber Dimensions: D500*W760*H500

3. Sample Tray Dimensions: 450*720mm

4. Temperature Range: Adjustable from ambient temperature to 110℃

5. Humidity Range: Below 65% RH

6. Black Panel Temperature: 60～110℃ ±3℃

7. Temperature Fluctuation: ±0.5°C

8. Temperature Uniformity: ±2.0°C

9. Glass Window Filters: 3 pcs

10. Lamp Source: Imported air-cooled xenon lamps

11. Number of Xenon Lamps: 4

12. Xenon Lamp Power: 1.8 kW per lamp

13. Power: 2 kW

14. Humidification Power: 1.0 kW

15. Distance between sample holder and lamp: 230–280 mm

16. Wavelength: 290–800 nm

17. Irradiance period continuously adjustable, time: 1–999 h, m, s

18. Irradiance: Average irradiance between 290 nm and 800 nm wavelengths is 550 W/m²

IV. The equipment has the following functions

Lightfastness testing of indoor materials

Simulated climate environment

Relative humidity control

Full-spectrum xenon lamp;

Solar irradiance control;

Relative humidity control;

Blackboard/or test chamber air temperature control system;

Required test methods;

Irregularly shaped mounting bracket;

Affordable and replaceable xenon lamp tubes.

Simulated full solar spectrum light source

Light intensity control

Influence of rainwater erosion and moisture

V. Protection System

1. Fan overheat protection;

2. Overall equipment phase loss/reverse phase protection;

3. Over-temperature protection;

4. Other protections include leakage protection;

5. Water shortage indication;

6. Automatic shutdown after fault alarm.

VI. Equipment Operating Conditions

1. Ambient Temperature: 5℃～＋28℃ (average temperature ≤28℃ within 24 hours);

2. Ambient Humidity: ≤85%;

3. Power Supply Requirements: AC 380 (±10%)V/50HZ, three-phase five-wire system;

4. Pre-installed Capacity: 12KW.

VII. Electrical Control System

The Xenon Arc Weathering Test Chamber offers multiple cycle programs, black panel temperature settings, and chamber air temperature and humidity conditions, allowing users to program and simulate different environmental conditions.

During exposure testing, the temperature is automatically calculated and controlled by a microcomputer-based intelligent temperature controller featuring PID self-tuning and a membrane keypad, making operation simple, convenient, and efficient.

The test time can be separately set for total test time, light exposure time, spray time, and spray interval. Once the settings are completed, the equipment automatically runs according to the programmed parameters.

The irradiance display continuously indicates the current light irradiance intensity during testing. If an abnormal condition occurs during the test or the test is completed, the equipment immediately activates an alarm and automatically terminates the test.
