The Plastic Film and Sheet Thickness Tester is widely used in laboratories, quality control departments, manufacturing facilities, and research institutions for precise thickness measurement of various thin and sheet-like materials. It is suitable for quality inspection and process control in industries such as plastics, packaging, paper, textiles, electronics, metal processing, and insulation materials.

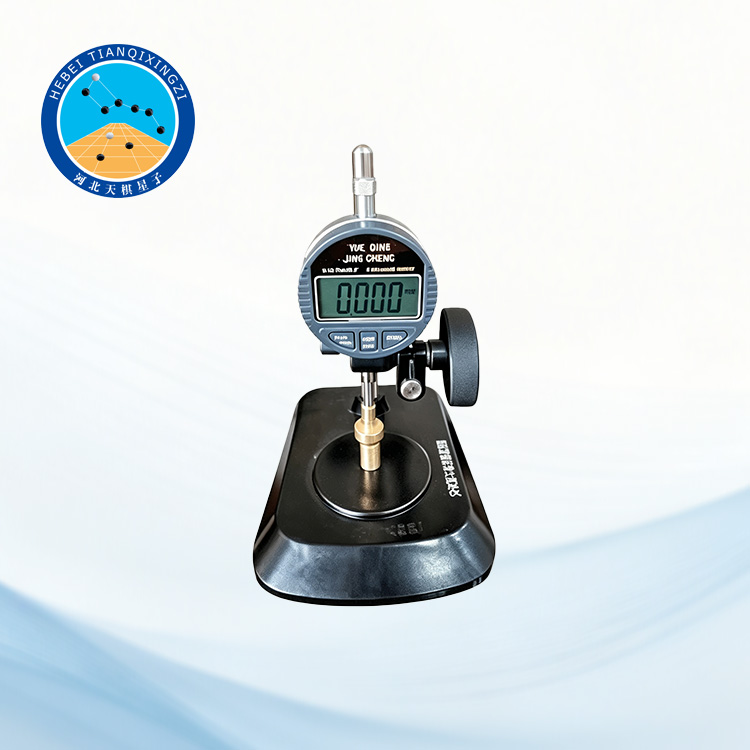

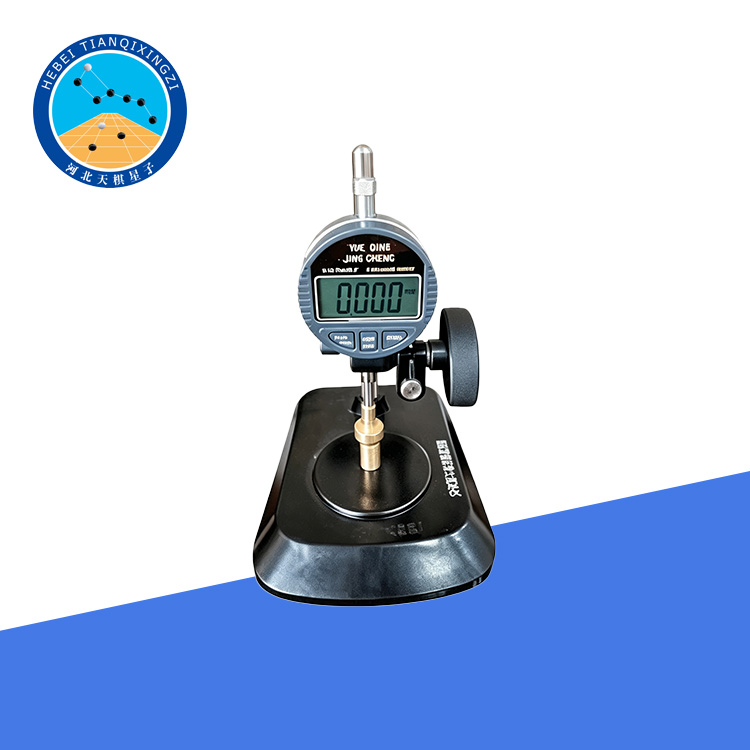

Plastic Film and Sheet Thickness Tester

Model:TD-34

I. Product Introduction

The Plastic Film and Sheet Thickness Tester is designed for measuring the thickness of plastic films and sheets. It can also be used to measure the thickness of paper and paperboard, foils, silicon wafers, metal sheets, textile materials, and solid electrical insulation materials.

II. Technical Specifications

1. Resolution: 0.001 mm

2. Measuring Range: 0–12 mm

3. Measuring Force:

When the upper and lower measuring surfaces are convex/flat, and the radius of curvature of the upper measuring surface is 15–50 mm, the measuring force applied to the specimen is 0.1–0.5 N.

4. Measurement Accuracy:

Within 100 μm: ±1 μm

100–250 μm: ±2 μm

Above 250 μm: ±3 μm

5. Overall Dimensions: 160 × 140 × 200 mm

6. Net Weight: 1.5 kg

III. Application

The instrument can be used for measuring:

Plastic films and sheets;

Paper and paperboard;

Metal foils and sheets;

Silicon wafers;

Textile materials;

Solid electrical insulation materials;

Other thin sheet or film materials.

IV. Features

1. High Resolution: With a resolution of 0.001 mm, the tester provides precise thickness measurement for thin materials.

2. Wide Measuring Range: The 0–12 mm measuring range accommodates different types and thicknesses of specimens.

3. Stable Measuring Force: The specified measuring force helps ensure consistent and repeatable measurement results.

4. High Measurement Accuracy: Different accuracy levels are provided according to specimen thickness.

5. Compact Design: The instrument features a compact structure and small footprint, making it suitable for laboratory and quality-control applications.

6. Easy Operation: The simple measuring mechanism allows operators to perform thickness measurements conveniently and efficiently.

V. Testing Principle

The specimen is placed between the upper and lower measuring surfaces of the tester. The upper measuring surface applies a specified measuring force to the specimen, and the corresponding displacement is used to determine the specimen thickness. The instrument provides high-resolution readings for accurate and repeatable thickness measurement.
