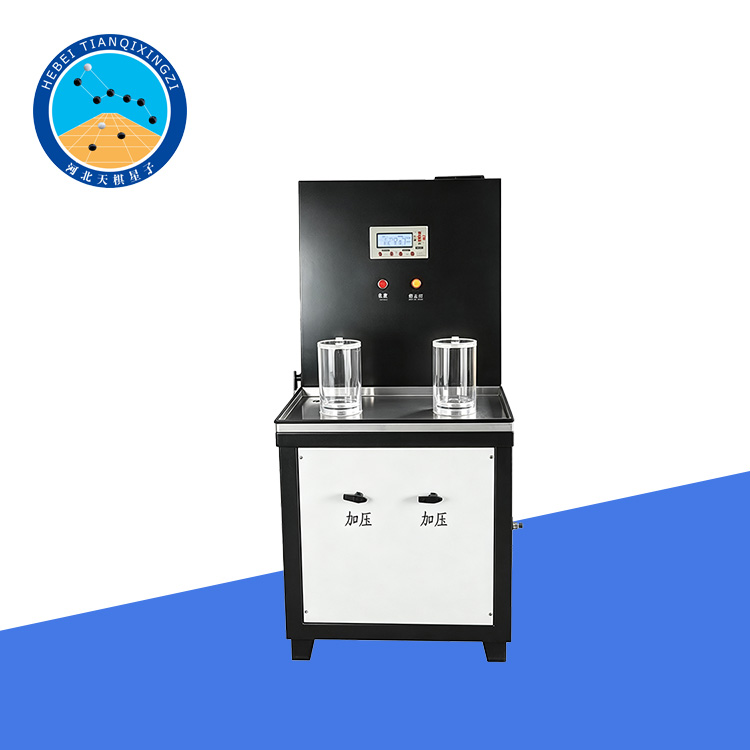

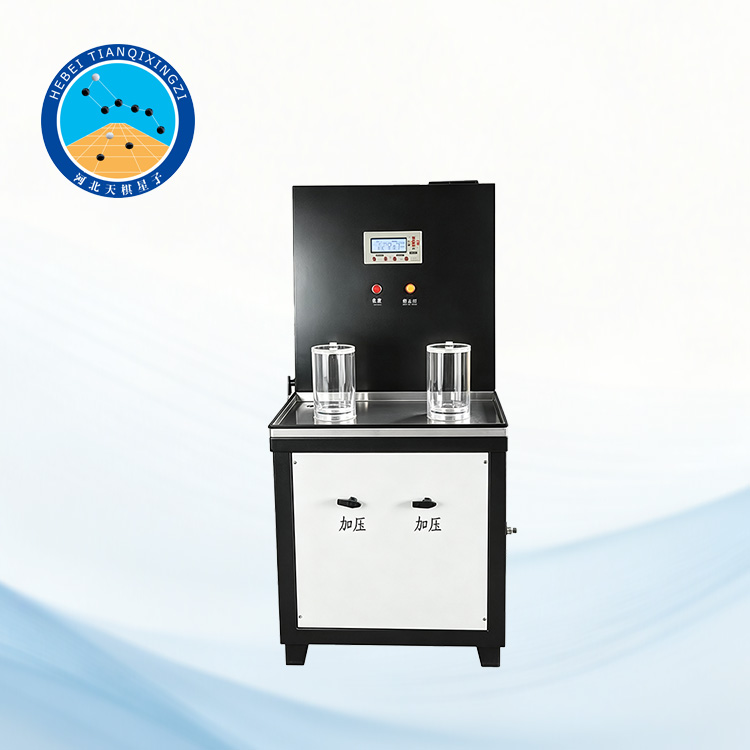

Geotextile Burst Strength Tester is designed to determine the bursting strength of geotextiles using the elastic diaphragm method. Equipped with an LCD control panel, high-precision pressure sensor, automatic pressure control, dual-station testing, and efficient water supply system, it provides accurate, stable, and convenient testing performance. The tester is suitable for laboratories, quality inspection agencies, research institutes, and geotextile manufacturers.

Geomembrane Burst Strength Tester

Model: TD-YT1212

I. Product Introduction

This instrument is designed in accordance with SL/T 235-1999 and GB/T 7742-1987, Textiles — Determination of Bursting Strength and Bursting Distension — Elastic Diaphragm Method. It is suitable for determining the bursting strength of geotextiles and features stable performance, convenient operation, and practical use.

Reference Standards: ASTM D3786/D3786M, ISO 13938-1:2019

II. Product Features

1. LCD Control Panel

The LCD control panel provides functions including preset pressure, automatic timing, automatic constant-pressure control, automatic pressure compensation, data storage, and zero resetting.

2. Spacious Stainless Steel Worktable

The spacious stainless steel worktable is rust-resistant and corrosion-resistant, providing a convenient and durable working surface for testing.

3. High-Precision Pressure Sensor

The built-in high-precision pressure sensor offers high sensitivity and accurate measurement results.

4. Aviation-Grade Aluminum Clamps

The aviation-grade aluminum clamps provide secure specimen gripping, excellent corrosion resistance, and long service life.

5. Two-Station Testing

The instrument can perform two specimen tests simultaneously, improving testing efficiency and productivity.

6. Dual Pressure Control Valves

Equipped with two dedicated pressure control valves, allowing convenient manual pressure adjustment for each specimen set.

7. Transparent Acrylic Water Collector

The water collector is made of plexiglass, which is highly transparent and facilitates experimental observation.

8. Built-In High-Efficiency Water Pump

The built-in high-efficiency water pump enables automatic water supply when connected to a water source.

9. Drainage Outlet

The instrument is equipped with a dedicated drainage outlet for convenient water discharge after testing.

III. Technical Parameters

1. Measurement Accuracy: ±0.5%

2. Inflow Rate: 100 mL/min

3. Water Collector Diameter: Φ30.5 mm

4. Maximum Pressure: 2.5 MPa

5. Specimen Size: Φ55 mm

6. Overall Dimensions: 830 × 830 × 1500 mm

7. Power Supply: AC 380 V, 50 Hz

8. Weight: 80 kg

IV. Test Principle

The specimen is securely clamped between the upper and lower clamps, with an elastic diaphragm positioned beneath the specimen. Water pressure is gradually applied to the diaphragm, causing the specimen to deform and eventually burst. The maximum pressure reached at the moment of specimen failure is recorded as the bursting strength. The test results can be used to evaluate the mechanical resistance and bursting performance of geotextiles.

V. Applications

The Geotextile Burst Strength Tester is suitable for testing woven and nonwoven geotextiles used in filtration, drainage, separation, reinforcement, erosion control, and other civil engineering applications. It is widely used by geotextile manufacturers, construction material laboratories, research institutes, universities, and third-party testing organizations.

VI. Test Items

The instrument can be used to evaluate:

Geotextile Bursting Strength;

Geotextile Burst Resistance;

Bursting Pressure;

Bursting Performance;

Burst Distension;

Pressure Resistance of Geotextile Materials.

VII. Typical Applications

The instrument can be used for quality control and performance evaluation of geotextiles in:

Road and railway engineering;

Landfill and environmental protection projects;

Drainage and filtration systems;

Hydraulic engineering;

Erosion control;

Reinforced soil structures;

Geosynthetic material research and development.
