The Electronic Universal Testing Machine for Geosynthetics is designed for testing the mechanical properties of geosynthetic materials. It is mainly used for tensile, compression, bending, tearing, and other mechanical tests. The machine is suitable for testing various geosynthetic materials, such as geotextiles, waterproofing materials, mesh, ropes, and other related materials.

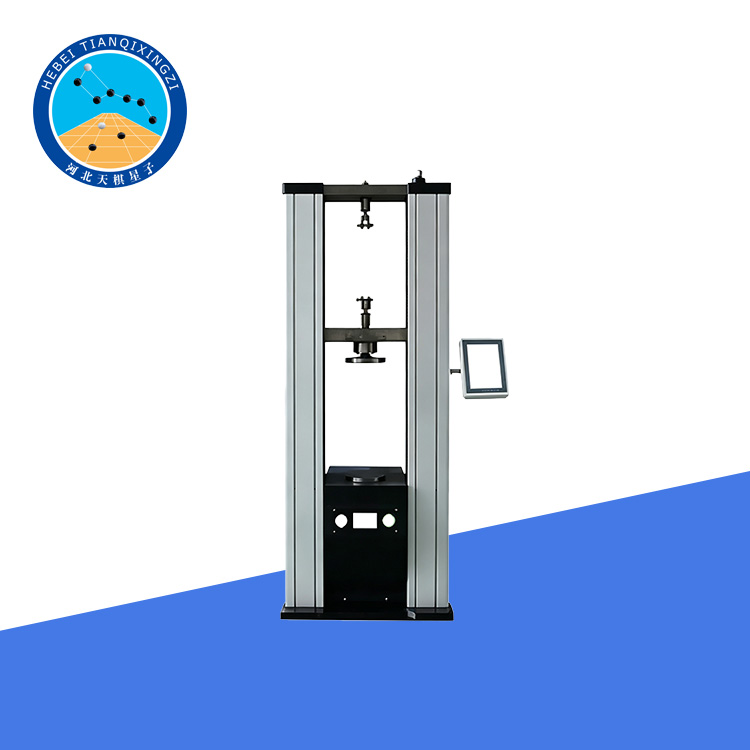

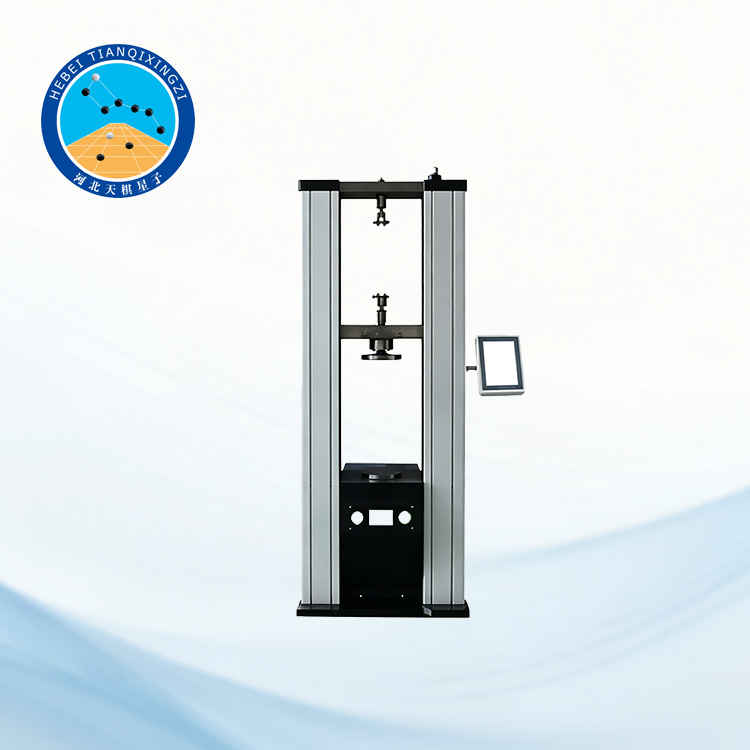

Electronic Universal Testing Machine for Geosynthetics

Model:TD1121-10

I. Product Introduction

The Electronic Universal Testing Machine for Geosynthetics is widely used in industrial and manufacturing enterprises, hardware and building materials, aerospace, machinery manufacturing, wires and cables, rubber and plastics, textiles, household appliances, papermaking, and other industries. It is also an ideal testing instrument for research institutes, colleges and universities, industrial and mining enterprises, technical supervision departments, and commodity inspection organizations.

Reference or Applicable Standards: ISO 10319:2024, EN ISO 10319:2024, ASTM D4595

II. Main Features

1. Multifunctional: The Electronic Universal Testing Machine can perform various tests, including tensile, compression, bending, and tearing tests, to meet different testing requirements.

2. High Precision: Equipped with high-precision sensors and a servo motor drive system, the machine ensures stable and accurate testing performance.

3. Automation: The machine features automatic data storage, data editing, and curve comparison functions, improving testing efficiency and accuracy.

4. Wide Application Range: It is suitable for testing a wide range of materials, including rubber, plastics, textiles, geotextiles, waterproofing materials, and other materials.

5. Excellent Expandability: Multiple sensors can be calibrated using a single machine, allowing the testing range to be expanded according to different testing requirements.

III. Main Technical Parameters

Maximum Test Force: 5000N, 10000N, 20000N, 50000N

Measuring Range: 2%-100.00% of maximum test force

Test Machine Accuracy Class: 0.5

Test Force Accuracy: Better than ±0.5% of indicated value

Crossbeam Displacement Measurement: Resolution 0.01mm

Deformation accuracy: Better than +0.5%

Speed range: 0.5-500mm/min

Extensometer accuracy: 0.01mm

Test space: 800mm

Main unit type: Portal frame structure

Main unit dimensions: 840×600×1450mm

Weight: Approx. 450Kg

IV. Control and Data Processing

The testing system adopts computerized control and digital data acquisition technology. Test parameters can be preset according to the applicable test method, while test force, displacement, deformation, and other parameters can be monitored in real time during testing.

The system can automatically record and store test data, generate test curves, compare multiple test curves, and export test results for further analysis and reporting. This helps reduce manual operation and improves testing efficiency and repeatability.

V. Applications

The Electronic Universal Testing Machine for Geosynthetics is suitable for quality control, product development, scientific research, and material performance evaluation. It can be used for testing:

Geotextiles;

Geogrids;

Geomembranes;

Geocomposites;

Waterproofing materials;

Rubber and plastic materials;

Textiles and fabrics;

Mesh and rope materials;

Wires and cables;

Other flexible and sheet materials
