The Servo Hydraulic Manhole Cover Compression Testing Machine is a high-precision and highly stable professional testing equipment designed for structural performance testing of municipal manhole cover products. With advanced electro-hydraulic servo control technology and high-accuracy measurement systems, it provides reliable quality testing and certification support for users worldwide.

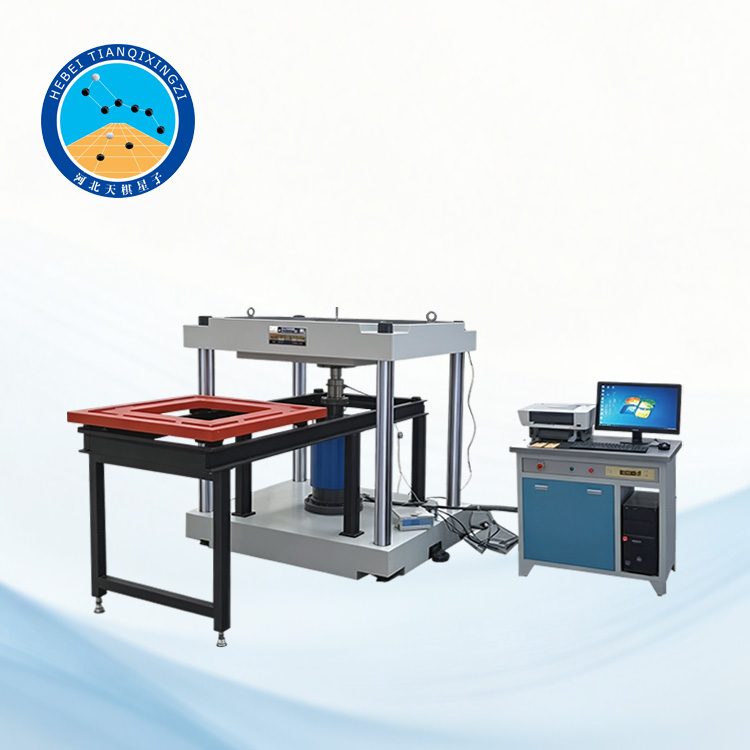

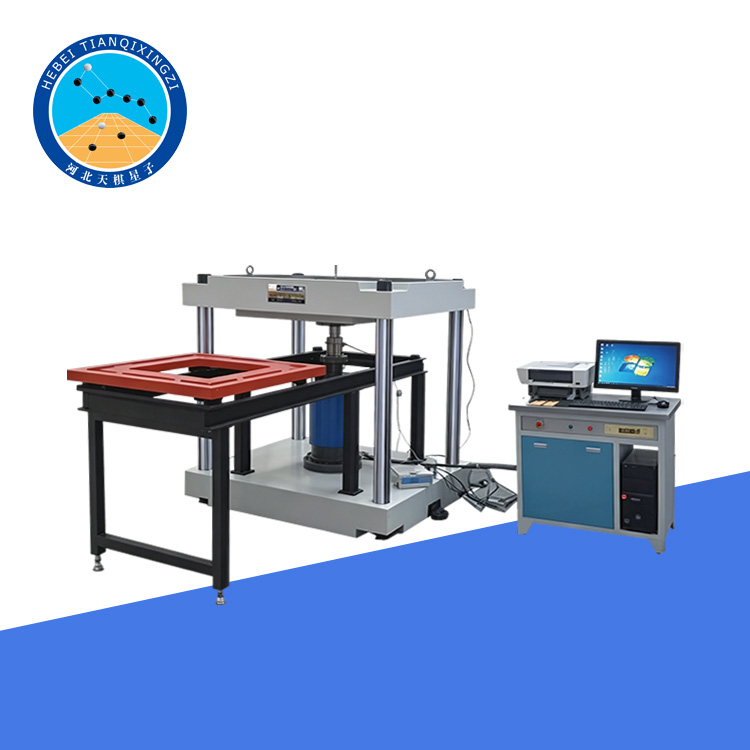

Servo Hydraulic Manhole Cover Compression Testing Machine

Model:TDYJG-600H

I. Product Overview

The Servo Hydraulic Manhole Cover Compression Testing Machine is a high-performance testing system designed for evaluating the load-bearing capacity, compressive strength, deformation behavior, and structural integrity of manhole covers, gully gratings, and related municipal access products.

It is engineered according to national and international standards such as:

EN 124

GB/T 23857-2009 Manhole Covers Standard

CJ/T 3012-1993 Cast Iron Manhole Covers

CJ/T 121-2000 Composite Resin Manhole Covers

CJ 889-2001 Steel Fiber Concrete Manhole Covers

The machine is widely used in quality inspection institutions, municipal engineering laboratories, construction material manufacturers, and research centers.

II. Testing Principle

The system applies controlled hydraulic force to simulate real-world traffic and load conditions. The testing process includes:

Static load compression test

Elastic deformation measurement

Permanent deformation evaluation

Optional cyclic loading test (for QT materials)

Destructive load testing (for HT materials)

The system ensures accurate simulation of service conditions for different material types.

III. Technical Specifications

Maximum Test Force: 600 kN

Effective Test Space: 1200 × 1200 mm

Workbench Height: 850 mm

Force Accuracy: ≤ ±1% (better than Class 1 accuracy)

Load Control Range: 0.1 – 30 kN/s (adjustable, constant load)

Deformation Measurement Range: 0 – 200 mm

Deformation Accuracy: 0.01 mm

Piston Stroke: 350 mm

Overload Protection: Automatic unloading at 2% overload

Load Display Resolution: 0.1 kN

Loading Mode: Electro-hydraulic drive system

Control Mode: Computer control + manual stepless adjustment, with automatic programming

Hydraulic Oil: 86# anti-wear hydraulic oil

Computer System: 19-inch LCD display with printer

Motor Power: 1.5 kW

Power Supply:Hydraulic system: 380V, 50Hz, 0.75 kW;Control system: 220V, 50Hz

Machine Dimensions: 1600 × 1300 × 1500 mm

Machine Weight: 4000 kg

IV. Applicable Materials

Cast iron manhole covers

Ductile iron (QT) covers

Composite resin covers

Steel fiber reinforced concrete covers

Polymer concrete covers

Gully gratings and frames

V. Applications

Municipal engineering laboratories

Construction material testing centers

Manhole cover manufacturers

Quality inspection institutes

Research institutions

Export certification testing (EU / Middle East / Africa markets)
