Asphalt Concrete Slope Stability Test Frame can simulate the slope environment in actual engineering projects and conduct long-term stability tests on asphalt concrete specimens under conditions such as temperature changes, slope angle, and humidity, providing scientific and reliable data support for engineering design, material research, and construction quality control.

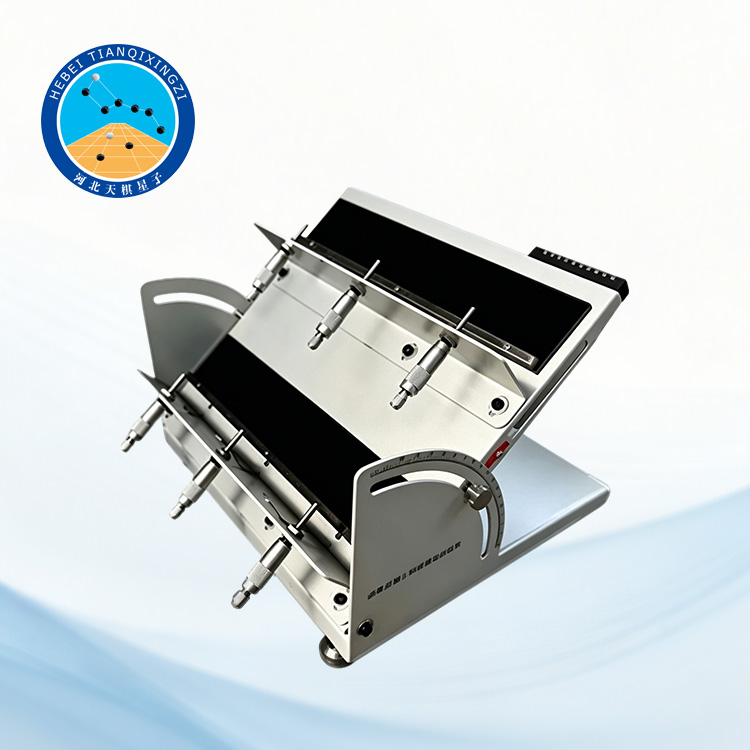

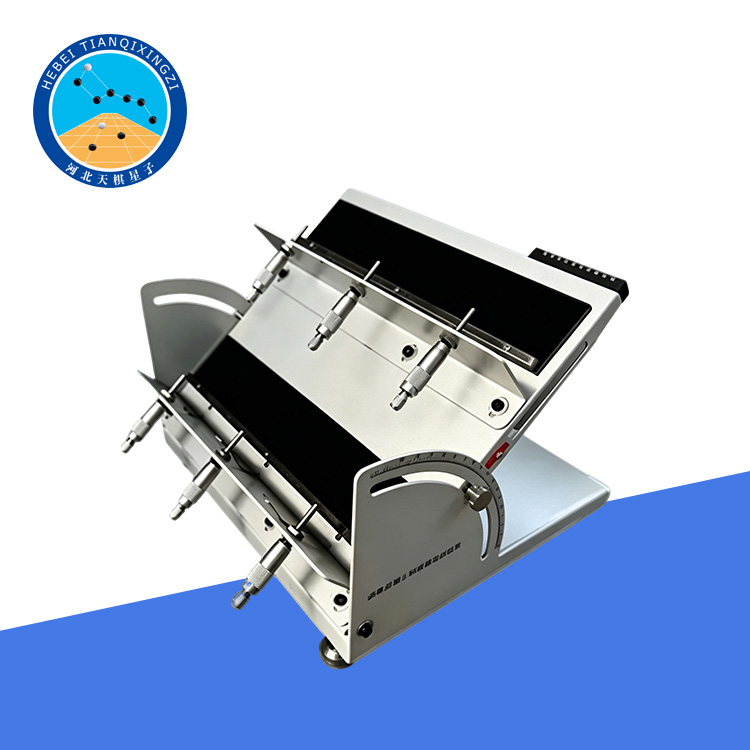

Asphalt Concrete Slope Stability Tester for Laboratory

Model:TDSL514-I

I. Product Overview

The Asphalt Concrete Slope Stability Test Frame is designed in accordance with SL-514-2013 Technical Specification for Hydraulic Asphalt Concrete Construction and DL/T 5362-2018 Test Code for Hydraulic Asphalt Concrete.This equipment is a professional testing apparatus specifically developed for evaluating the slope stability performance of asphalt concrete materials. It is widely used in hydraulic engineering, road engineering, research institutes, universities, and quality inspection laboratories.

The test frame is used to assess the stability and anti-sliding performance of asphalt concrete under different slope angles and environmental conditions, providing reliable data support for material performance evaluation, engineering design, and quality control.

II. Working Principle

The Asphalt Concrete Slope Stability Test Frame simulates real slope conditions by placing asphalt concrete specimens on an adjustable inclined platform and conducting tests under specified temperature and environmental conditions.

During the test, the following properties can be measured:

Slip displacement

Deformation performance

High-temperature stability

Creep performance

Structural stability

By observing the changes in the specimens over a certain period, the long-term performance and safety stability of asphalt concrete materials in actual engineering projects can be evaluated.

III. Product Features

1. Realistically simulates engineering slope environments, improving the reliability and reference value of test results.

2. Supports different slope adjustments to meet various testing needs.

3. Constructed with high-strength steel structure, ensuring stable operation and long service life.

4. Reasonable equipment structure, convenient operation, and improved testing efficiency.

5. Applicable to stability testing of asphalt concrete specimens of different specifications.

6. Provides accurate data support for engineering design, material research and development, and quality inspection.

IV. Scope of Application

This equipment is suitable for:

Hydraulic asphalt concrete engineering

Reservoir and dam seepage prevention engineering

Pumped storage power station engineering

Asphalt concrete core wall engineering

Highway and bridge engineering research

Research institutes and university laboratories

Material performance testing and quality control
