The Fiber Oil Absorption Tester provides a fast and precise method for evaluating the interaction between fibers and bituminous materials by determining the amount of oil absorbed under standardized conditions. It helps engineers optimize fiber dosage in asphalt mixtures, improve mixture stability, and ensure consistent performance in pavement construction.

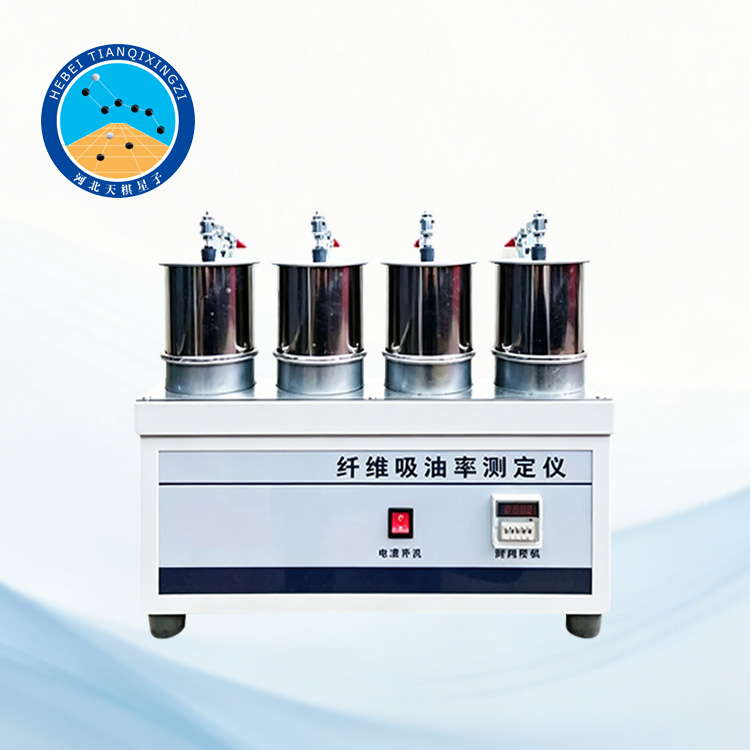

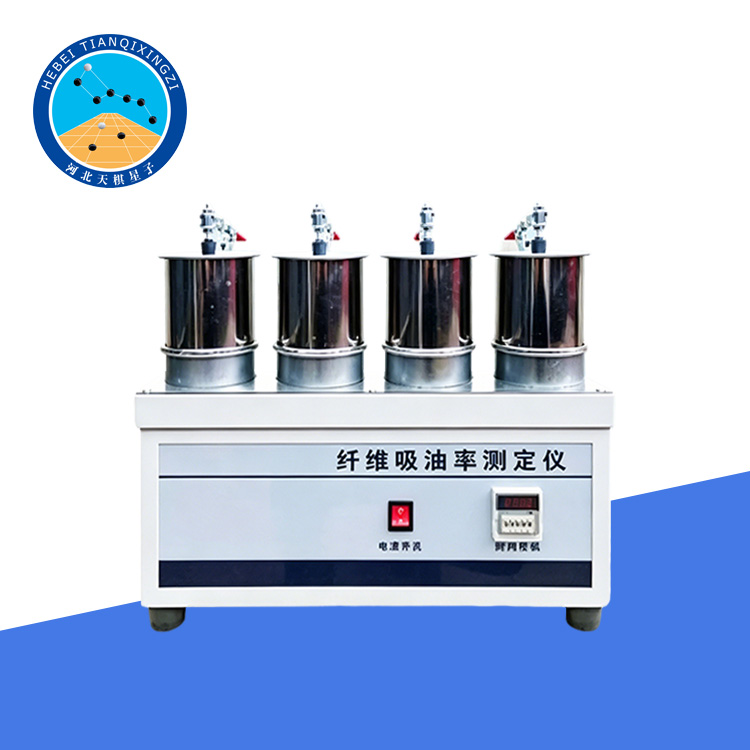

Fiber Oil Absorption Tester

Model: TDJ533-XY

I. Product Introduction

The Fiber Oil Absorption Tester for Asphalt Pavement is a professional testing instrument developed and manufactured by Hebei Tianqixingzi Inspection Equipment Co., Ltd. in strict accordance with the relevant testing requirements of JT/T 533-2020 Fiber for Asphalt Pavement. The equipment is mainly used to determine the oil absorption performance of various fiber materials used in asphalt pavements.

This instrument is suitable for oil absorption testing of lignin fibers, mineral fibers, polyester fibers, fiber stabilizers, and other related materials. It is widely used in highway engineering, asphalt mixture design, road construction quality control, universities, research institutes, and third-party testing laboratories.

II. Product Features

1. Uniform and Stable Vibration

Utilizing a professionally designed vibration mechanism, the vibration speed is stable, ensuring thorough mixing of the sample and improving test accuracy.

2. Automatic Timing Control

Equipped with a time relay, the vibration time can be freely set. The machine automatically stops and alarms when the set time is reached.

3. Manual Control Support

Users can manually control the vibration time using the power switch according to their test needs, offering flexible and convenient operation.

4. Excellent Test Repeatability

The equipment operates smoothly, producing stable and reliable test results, suitable for long-term laboratory testing.

5. Simple Operation

Compact structure, easy to use, and simple maintenance, effectively improving laboratory work efficiency.

6. Wide Range of Applications

Applicable to oil absorption rate tests of various asphalt pavement fiber materials.

III. Technical Parameters:

1. Vibration Time: 0-60 min

2. Power Supply: 220V 50Hz

3. Sample Sieve Specification: 0.5mm

4. Aperture/Diameter: 100mm

5. Vibration Speed: 240 times/minute

6. Vibration Amplitude: 32mm

7. Vibration Time: Manually controllable

IV. Operating Procedure

1. Weigh the required quantity of fiber sample and mineral oil according to the testing requirements.

2. Pour the mixed sample into the specimen sieve of the instrument.

3. Set the vibration time and connect the equipment to a 220V/50Hz power supply.

4. Turn on the power switch, and the equipment will start the vibration test.

5. When the preset time is reached, the instrument will automatically stop and provide an alarm indication.

6. Remove the specimen sieve and weigh the fiber sample after absorbing the mineral oil.

7. Calculate the fiber oil absorption rate according to the relevant calculation formula.

V. Scope of Application

This equipment is mainly suitable for:

Asphalt pavement engineering laboratories

Highway engineering quality testing units

Asphalt mixture design research

Universities and research institutions

Third-party testing institutions

Asphalt material manufacturers

Suitable for testing:

Wood fibers

Mineral fibers

Polyester fibers

Fiber stabilizers

SMA asphalt mixture fiber materials
