The Fiber Tensile Strength and Elongation Testing Machine adopts advanced electronic control technology and is equipped with four closed-loop control modes, including stress, strain, load, and displacement, enabling high-precision and stable material performance testing.

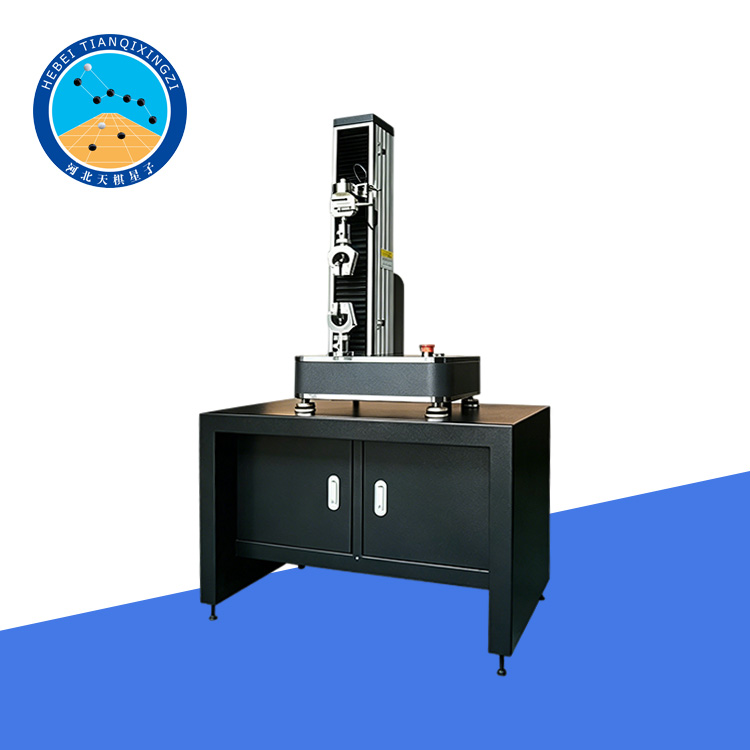

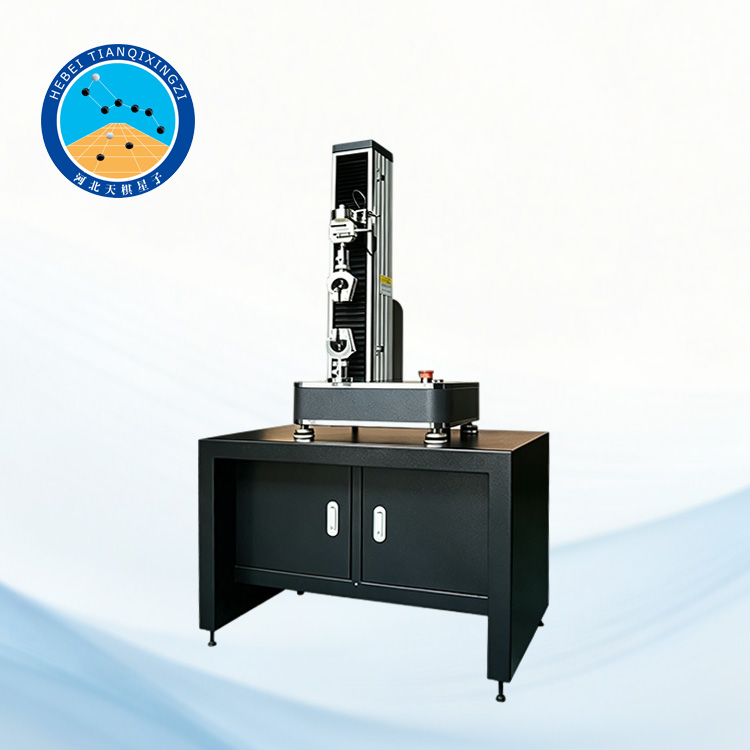

Fiber Tensile Strength and Elongation Testing Machine

Model:TDJT533-S

I. Product Introduction

The instrument is designed and manufactured in accordance with the requirements of GB/T 16491-2008 Electronic Universal Testing Machine. The machine structure fully considers modern industrial design principles and ergonomic requirements. The enclosure adopts an alloy frame structure to enhance rigidity, and a double-layer metal baking paint finish is applied to extend service life and improve appearance.

This testing machine is mainly suitable for mechanical property testing and analysis of various metal, non-metal, and composite materials under test loads below 5 kN. It can determine parameters such as maximum tensile strength, flexural strength, compressive strength, elastic modulus, elongation at break, and yield strength.

Reference or Applicable Standards:

JT/T 533, ISO 7500-1, ASTM E4

II. Key Features

1. Computer-controlled operation system for high automation

2. Four control modes: stress, strain, load, displacement

3. High-precision load cell with 0.01% resolution

4. Real-time data acquisition and analysis software

5. Multi-language software support (Chinese / English / up to 8 languages)

6. Ergonomic and industrial design structure

7. Alloy frame construction for enhanced rigidity and durability

8. Double-layer baked metal coating for corrosion resistance and long service life

9. Emergency stop and electronic limit protection for safe operation

10. Customizable fixtures according to sample requirements

III. Technical Parameters

1. Maximum Load: Up to 5000N (selectable)

2. Load Cell Accuracy (Tensile Test): 0.01%

3. Testing Accuracy: <±0.5% (National Metrology Report Available)

4. Displacement Indication Error: Within ±0.5% of Indication Value

5. Operation method: Fully computer controlled

6. Testing software: Chinese-English converter, and also an eight-language software.

7. Effective width: 150mm

8. Effective tensile space: 800mm (can be increased as needed)

9. Tensile testing speed: 0.001~500mm/min (adjustable), up to 1000mm/min.

10. Speed accuracy: within ±0.5%

11. Displacement measurement accuracy: within ±0.5%

12. Deformation measurement accuracy: within ±0.5%

13. Safety devices: electronic limit protection, emergency stop button (Safeguardstroke)

14. System: Controlled by a portable remote control or the instrument's own LCD screen.

15. Fixture Configuration: One set of fixtures customized according to the user's product sample requirements.

16. Machine Weight: Approximately 100kg

17. Power Supply Voltage: 220V

18. Main unit dimensions: 590*355*1640mm

IV. Product Advantages

High precision and stable performance;

Versatile testing capability for multiple materials;

Intelligent digital control system;

Rugged structure and long service life;

Simple operation and user-friendly software interface;

Suitable for laboratory and industrial environments
