The Wood-Based Panel Scratch Resistance Tester specially developed for testing the scratch resistance of wood-based panels and surface-decorated wood-based panels. It provides accurate, reliable, and repeatable test results, making it an ideal choice for quality inspection laboratories, wood-based panel manufacturers, research institutes, and third-party testing organizations.

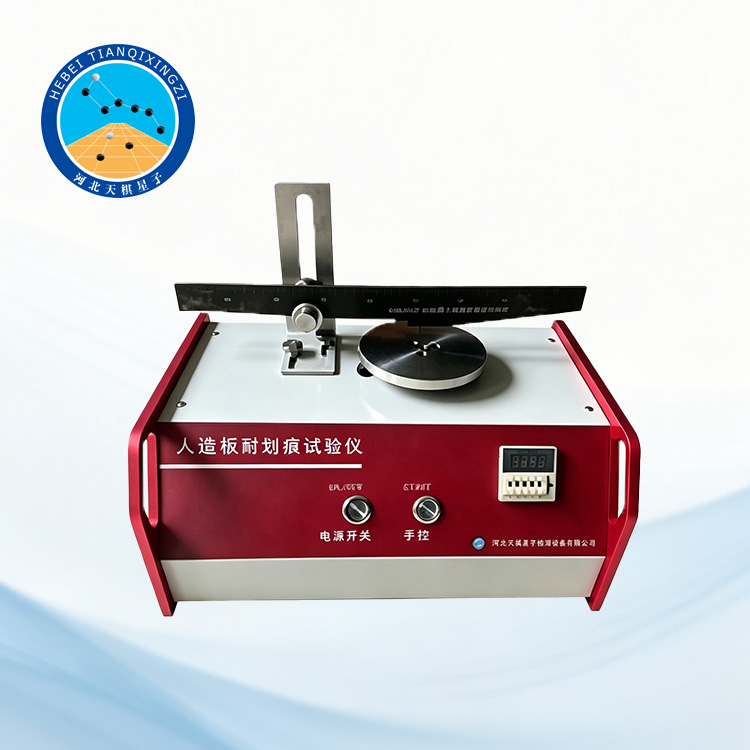

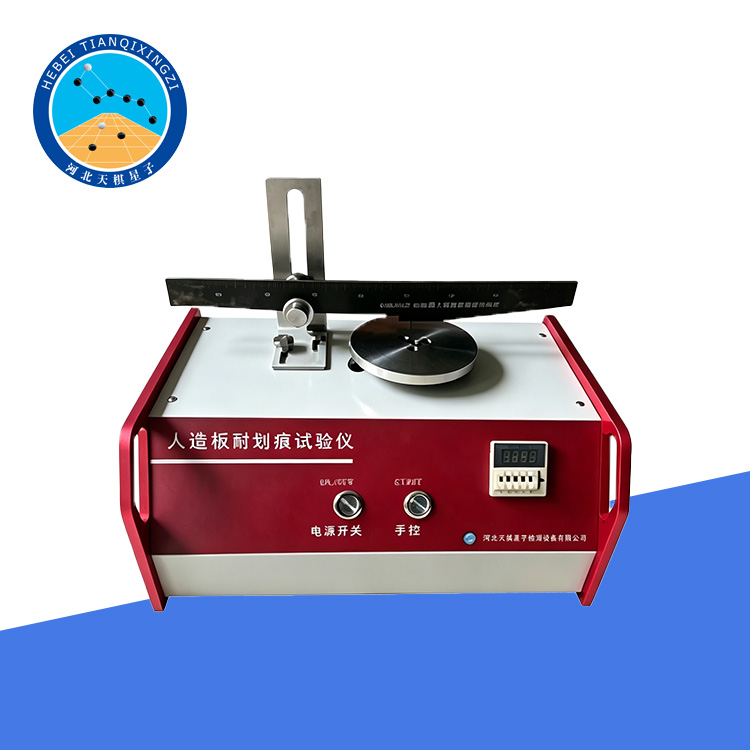

Wood-Based Panel Scratch Resistance Tester

Model:TDSB-HH1

I. Product Overview

It can perform scratch resistance tests according to GB/T 17657 – Test Methods of Evaluating the Properties of Wood-Based Panels and Surface Decorated Wood-Based Panels, with reference to EN 15186 and EN 14323. It is used to determine the number of revolutions required to produce a specified degree of surface wear when a pair of abrasive wheels covered with abrasive paper rub against a rotating test specimen under a specified load.

This test method is applicable to laminate flooring with impregnated paper overlays and other decorative wood-based panel surfaces requiring scratch resistance evaluation.

II. Applications

The Wood-Based Panel Scratch Resistance Tester is used to evaluate the scratch resistance and surface durability of materials by assessing their resistance to scratching, scoring, scraping, gouging, and similar surface damage. In addition to wood-based panels, it can also be applied to rigid organic materials, plastics, glass, and other decorative surface materials.

III. Technical Specifications

Maximum Test Load: 6 N

Specimen Rotation Speed: 5 ± 1 r/min

Test Force Accuracy: ±2%

Power Supply: AC 220 V, 50 Hz

Specimen Diameter: Ø90–Ø100 mm

Overall Dimensions: 470 × 280 × 310 mm

Net Weight: Approximately 10 kg

IV. Product Features

Designed for scratch resistance testing of wood-based panels and decorative surfaces;

Stable rotating specimen system for accurate and repeatable results;

Precise loading mechanism with high testing accuracy;

Compact structure and easy operation;

Suitable for routine quality control and laboratory research;

Reliable performance with low maintenance requirements;

Provides consistent and reproducible testing data.
