The Wood-Based Panel Dimensional Stability Test Apparatus is designed for evaluating the dimensional changes of thin wood-based panels and decorative surface panels under different temperature and humidity conditions.

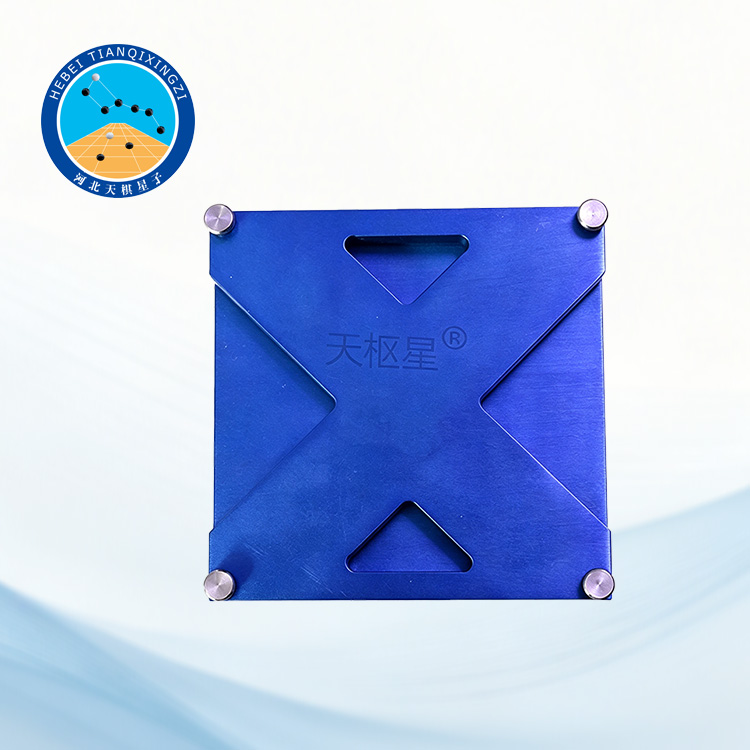

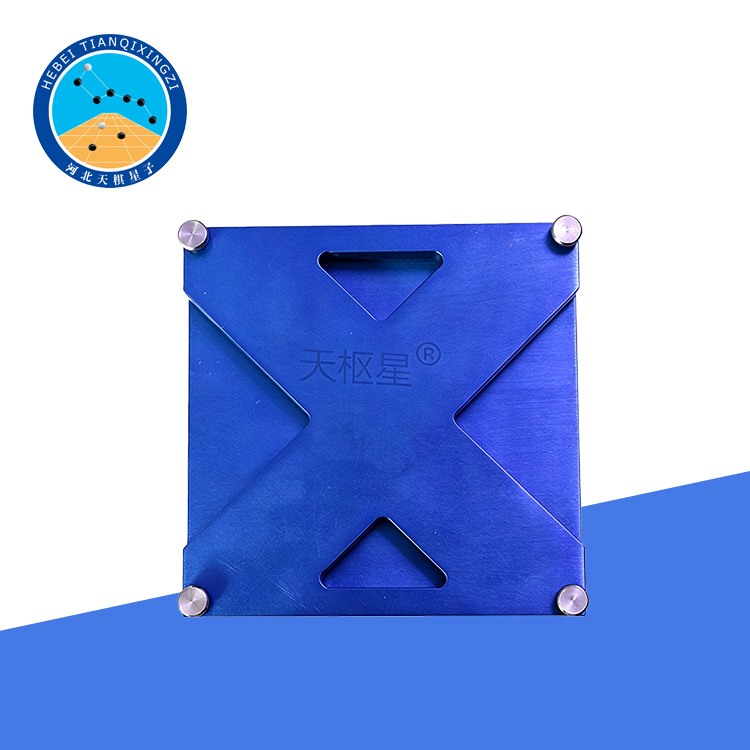

Wood-Based Panel Dimensional Stability Test Apparatus

Model:TD17657-CWJ

I. Product Overview

This test fixture is mainly used to support and hold specimens during dimensional stability testing, helping laboratories accurately measure length changes caused by dry heat, high humidity, and environmental conditioning. It is suitable for quality control, research laboratories, and manufacturers of wood-based panels.

The apparatus is designed according to the requirements of wood-based panel testing methods and provides reliable support for measuring dimensional stability performance of thin panels with a thickness of ≤2 mm.

II. Main Technical Specifications

1. Specimen Requirements

Applicable specimen thickness: ≤2 mm

Specimen size:

Length: (120 ± 1) mm

Width: (120 ± 1) mm

Specimen edges: Smoothly sanded without visible cracks

2. Conditioning Requirements

Conditioning temperature: (23 ± 2) ℃

Relative humidity: (50 ± 5) %

Conditioning time: Minimum 72 hours

III. Product Features

1. Accurate Specimen Positioning

The fixture provides stable support for thin panel specimens, ensuring accurate measurement of dimensional changes during testing.

2. Suitable for Thin Panel Testing

Specially designed for wood-based panels with thickness ≤2 mm, preventing deformation during measurement.

3. Reliable Test Repeatability

The stable structure helps maintain consistent specimen positioning throughout conditioning and heat treatment processes.

4. Laboratory Durable Design

Manufactured with high-quality materials, the apparatus is suitable for long-term laboratory use in quality inspection and research applications.

5. Easy Operation

The simple structure allows quick specimen installation, measurement, and removal, improving laboratory testing efficiency.

IV. Why Choose Our Wood-Based Panel Dimensional Stability Test Apparatus?

Designed specifically for thin wood-based panel dimensional stability testing;

Stable specimen holding structure for accurate measurements;

Suitable for laboratory quality control and material research;

Compatible with various wood-based panel testing standards;

Custom design and manufacturing available according to customer requirements.
