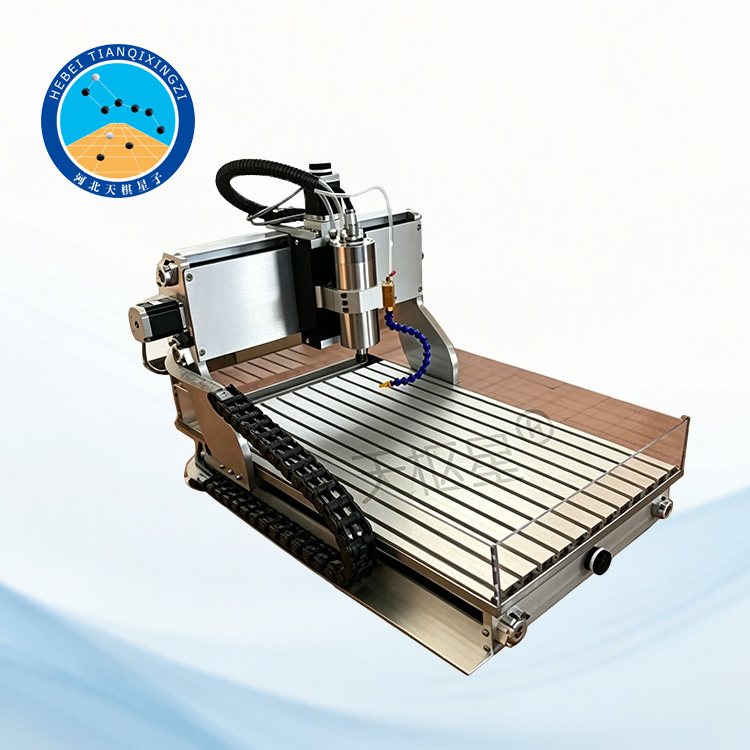

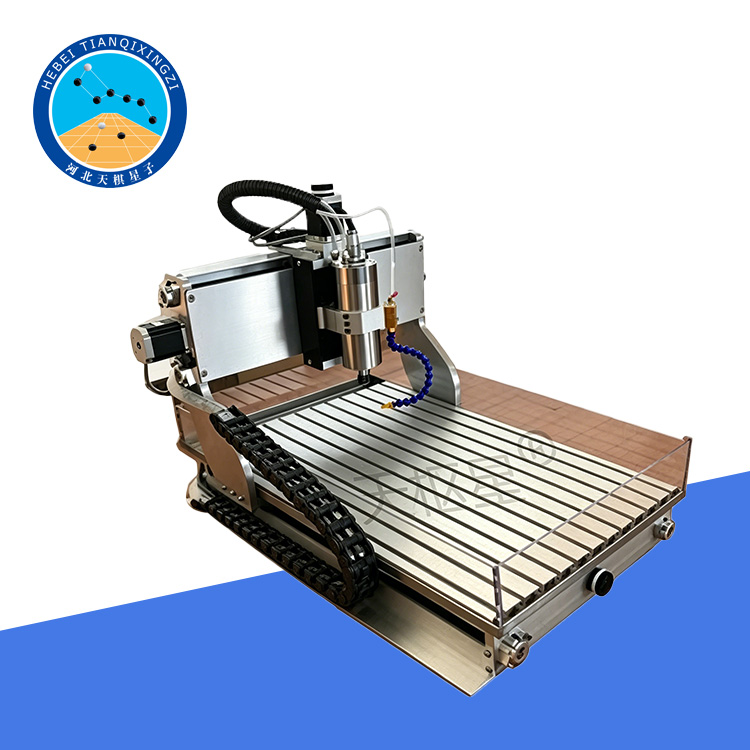

CNC Wood Panel Specimen Cutting Machine

Model:TD17657-ZY

I. Product Introduction

CNC specimen preparation equipment for wood-based panel testing, manufactured in compliance with GB/T17657, EN 326, ISO 3129, and ASTM D1037 standards.It is extensively applied in a wide range of industries such as advertising, handicrafts, mold making, electronics, construction, printing and packaging, woodworking, interior decoration, monument and memorial processing, crystal products, and other precision manufacturing sectors.

II. Technical Parameters

1. X, Y Axis Travel: 1300 × 1800 mm

Z Axis Travel: 150 mm

2. Table Size: 1800 × 2500 mm

3. Maximum Travel Speed: 8.8–15 m/min

Maximum Engraving Speed: 6–10 m/min

4. Resolution: 0.01 mm

5. Repositioning Accuracy: 0.05 mm

6. Maximum Feeding Height: 200 mm

7. Engraving Commands: G-code (*.u00, *.mmg, *.plt)

8. Software Operating Environment: Windows 98 / 2000 / XP

9. Power (excluding spindle): 1000 W

10. Working Voltage: AC 220 V / 50 Hz

11. Spindle Power: 3 kW (optional 2.2 kW)

12. Spindle Speed: 24,000 rpm

13. Working System: Stepper / Servo

14. DC Voltage: DC 36 V / 48 V / 72 V

III. Daily Maintenance

The machine should operate for no more than 10 hours per day continuously. Ensure that the cooling water remains clean and the water pump operates normally. Never allow the water-cooled spindle motor to run without sufficient water. Replace the cooling water regularly to prevent overheating.In winter, if the working environment temperature is too low, the water in the tank should be replaced with antifreeze coolant.

After each use of the machine, it is necessary to clean it thoroughly. Make sure that dust on the table surface and transmission system is completely removed. The transmission system (X, Y, and Z axes) should be lubricated regularly (once a week).

For maintenance: the X, Y, and Z axis smooth rods should be lubricated with machine oil, while the ball screw components should be lubricated with high-speed grease. In winter, if the working environment temperature is too low, the ball screws, smooth rods (square or round linear guides) should first be cleaned with gasoline, and then lubricated with machine oil. Otherwise, increased transmission resistance may occur, leading to machine positioning errors.

Before performing any electrical maintenance or inspection, the power supply must be completely disconnected. Only proceed when the monitor shows no display and the main circuit power indicator is off.

After approximately three months of operation, all fasteners should be checked and tightened, including the gantry side connection bolts, ball screw nut fastening screws, and motor mounting screws on both sides.

IV. Machine Features

High-precision CNC control system for stable and accurate machining;

Heavy-duty gantry structure for improved rigidity and durability;

High-speed spindle ensuring smooth cutting performance;

Compatible with multiple G-code formats for flexible operation;

Easy-to-use control software with stable Windows-based interface;

Suitable for continuous industrial and laboratory operation;

Low vibration design for improved machining accuracy;

Supports automatic and semi-automatic processing modes.

V. Application Areas

This machine is suitable for precision cutting and sample preparation in:

Wood-based panel testing laboratories

Quality inspection institutions

Furniture and panel manufacturing industries

Research and development laboratories

Material testing centers

Industrial sample preparation workshops

Engineering and technical colleges

VII. Packaging & Delivery

Standard export wooden case packaging

Anti-vibration and moisture-proof protection

Complete set of tools and accessories included

User manual and operation video provided

Remote technical support available

VIII.FAQ

1. What is this CNC machine mainly used for?

This CNC machine is designed for precision cutting and specimen preparation of wood-based panels. It is widely used in laboratories and testing institutions for producing standard test samples for material performance evaluation.

2. Is the machine suitable for laboratory testing applications?

Yes, the machine is specially designed for laboratory and quality control environments. It is widely used in material testing centers and research institutions for preparing test specimens with high accuracy and repeatability.

3. What control system does the machine use?

The machine operates through a CNC control system compatible with standard G-code formats. It supports stepper or servo motor configurations for stable and precise motion control.

4. Does the machine require professional installation?

Basic installation guidance is provided, and the machine is designed for easy setup. We also offer remote technical support, installation videos, and operation training to ensure smooth commissioning.
