The Wood-Based Panel Water Immersion Test Rack is a specialized laboratory accessory designed for water immersion treatment of wood-based panels and surface decorated wood-based panels before static bending strength testing.

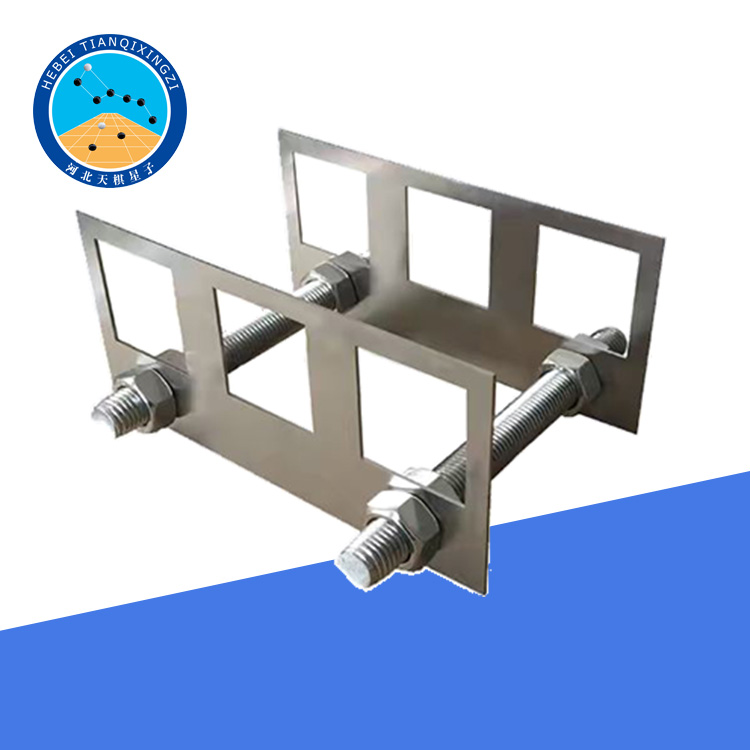

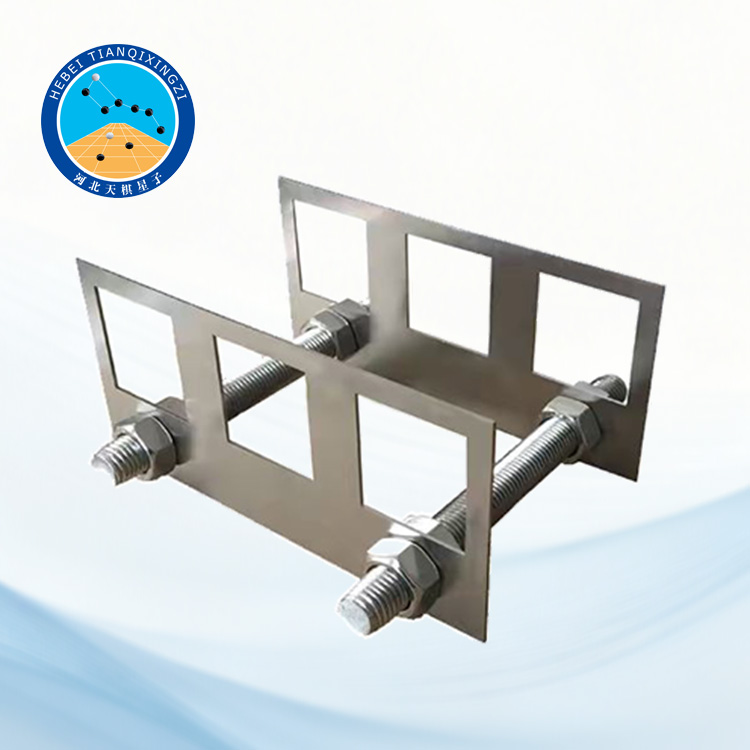

Wood-Based Panel Water Immersion Test Rack

Model:TD17657-SJJ

I. Product Introduction

The Wood-Based Panel Water Immersion Test Rack is mainly used to hold and position test specimens during 70°C and 100°C water immersion treatment, ensuring that the specimens remain fully immersed in water for the specified duration. The rack provides stable support and separation between samples, helping maintain consistent testing conditions and improving the accuracy and repeatability of test results.It immersion test rack is widely used in laboratories for testing plywood, particleboard, fiberboard (MDF/HDF), OSB, and other wood-based panel materials.

II. Applicable Standards

This product complies with or references the following standards:

GB/T 17657-2022 — Test Methods of Evaluating the Properties of Wood-Based Panels and Surface Decorated Wood-Based Panels

ISO 16981 — Wood-Based Panels — Determination of Swelling in Thickness After Immersion in Water

ASTM D1037 — Standard Test Methods for Evaluating the Properties of Wood-Base Fiber and Particle Panel Materials

EN 317 — Particleboards and Fibreboards — Determination of Swelling in Thickness After Immersion in Water

III. Technical Parameters

Applicable Temperature:70°C / 100°C water immersion treatment

Dimensions:180 mm × 130 mm × 51 mm

Number of Compartments:3 sections

Product Weight:1.2 kg

Adjustable Specimen Length:150 mm – 1050 mm

Included Components:Support rack ×1, rack hook ×1

IV. Applications

The Wood-Based Panel Water Immersion Test Rack is suitable for:

Wood-based panel testing laboratories

Quality inspection centers

Research institutes

Universities and technical colleges

Plywood and MDF manufacturers

Furniture and building material testing laboratories

Applicable materials include:

Plywood

Particleboard

Medium Density Fiberboard (MDF)

High Density Fiberboard (HDF)

Oriented Strand Board (OSB)

Other wood-based panel products

V. Product Features

1. The rack securely holds test specimens in place during water immersion, preventing floating, overlapping, or uneven exposure to water.

2. The distance between the two supports can be adjusted to accommodate different specimen lengths from 150 mm to 1050 mm, providing excellent flexibility for various test requirements.

3. The rack is designed with three separated sections, allowing multiple specimens to be positioned separately during immersion treatment.

4.The structure is designed for repeated laboratory use, offering good stability, corrosion resistance, and convenient operation.

5. By ensuring complete immersion and consistent treatment conditions, the rack helps improve the reliability of static bending strength test results after water immersion.
