The Digital Standard Force Gauge can be used for tensile and compressive load testing, insertion and extraction force testing, as well as destructive testing. With its high accuracy, high resolution, and stable performance, the device ensures reliable and repeatable measurement results even under demanding testing conditions, meeting the requirements of standardized testing and quality control.

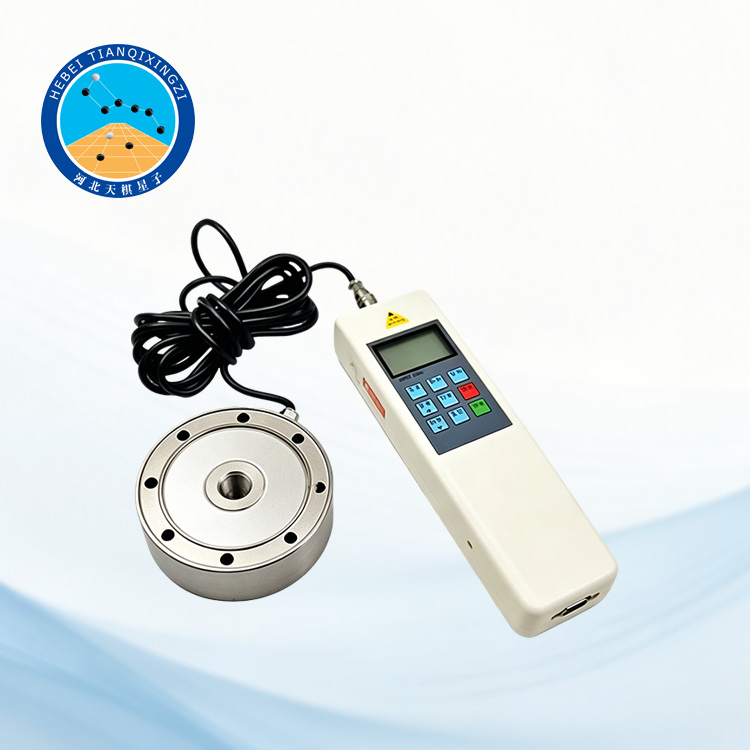

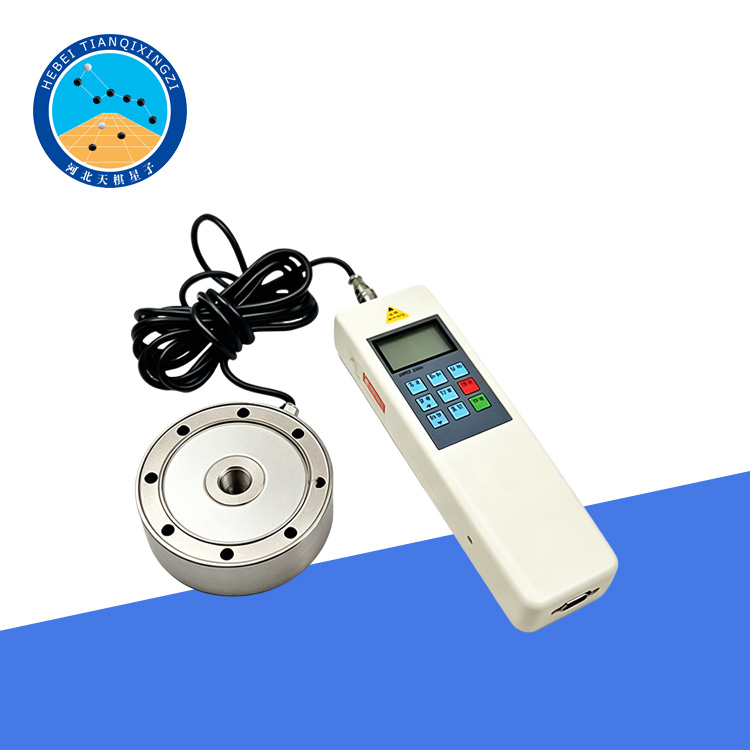

Portable Digital Force Gauge

Model:TD-200T

I. Product Introduction

The Digital Standard Force Gauge is a high-precision, wide-range digital electronic push-pull force testing instrument designed for accurate measurement and analysis of tensile and compressive loads in various applications.This equipment is widely used in industries such as high and low voltage electrical appliances, electronic components, hardware and locks, automotive parts, ignition systems, pen manufacturing, light industry, construction engineering, fishing tackle, textiles, chemical industry, mechanical manufacturing, and IT. It is also suitable for research institutes and quality inspection laboratories.

II. Features

High precision and high resolution: Ensures accurate measurement results and meets stringent testing standards.

Large-screen display: 6-digit large screen display with clear and intuitive readings for easy data interpretation.

Backlight function: Allows easy reading of data even in low-light environments.

LCD display rotation function: Adapts to different viewing angles, improving operational convenience.

Auto power-off function: Automatically shuts down after 10 minutes of inactivity, saving energy and extending battery life.

Battery status indicator: Real-time monitoring of battery condition to ensure continuous and reliable testing.

Multiple testing modes and display units: Supports N, kg, and lb units. Gravitational acceleration can be set to ensure accurate unit conversion.

Peak hold function: Retains the peak value display until manually reset to zero.

Data storage and output function: Stores up to 896 test values and transfers data to a computer via data cable for analysis.

Upper and lower limit alarm function: Allows setting upper and lower alarm thresholds with audible and visual alarms, as well as digital signal output.

Multiple communication methods: Supports serial communication (USB interface). The computer can display force curves, force value tables, and other visualization formats, and perform data processing and analysis.

III. Technical Parameters

Measuring range: 0–200 t

Accuracy class: Class 0.3

Resolution: High resolution

Data storage: Stores up to 896 test values, with support for data export to a computer for analysis

Operating environment:

Operating temperature: -10°C to +40°C

Operating humidity: ≤85% RH at 20°C

IV. Applications

The Digital Force Gauge is widely used for:

Push and pull force testing

Tensile and compressive strength testing

Insertion and extraction force testing

Destructive testing of components and materials

Quality control and production inspection

Laboratory research and product development

Calibration of testing equipment and force measurement systems
