The machine is equipped with the advanced EBC-1000 microcomputer color-screen controller, which automatically performs the testing process according to the preset loading rate. During the test, load, loading speed, test time, and test curves are displayed in real time. After the test is completed, the system automatically saves the test data and supports result inquiry and report printing.

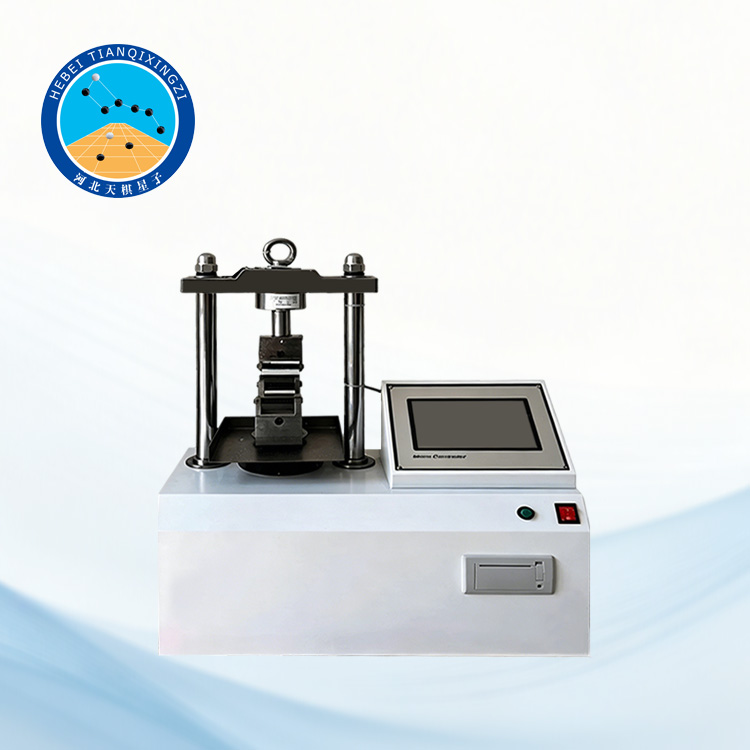

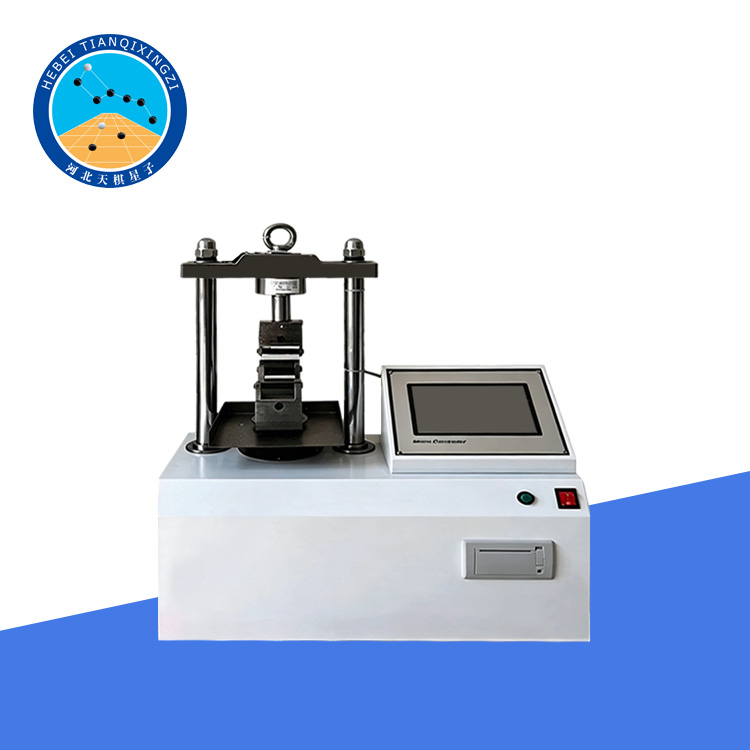

Microcomputer-Controlled Cement Flexural Testing Machine

Model:TDYDW-10

I. Product Overview

The Microcomputer-Controlled Cement Flexural Testing Machine is a high-precision building materials strength testing device specially designed for determining the flexural strength of cement mortar, clay bricks, refractory bricks, and other construction materials.The equipment employs a stepper motor drive system and a precision ball screw loading mechanism, enabling stable loading, accurate measurement, and reliable test results. With its compact structure, low operating noise, energy efficiency, environmental friendliness, and ease of operation, this equipment is widely used in building materials laboratories, quality testing institutions, cement production enterprises, universities, and research institutes.

Complies with or references the following international standards: GB/T 17671, ISO 679, EN 196-1, ASTM C348, ASTM C67, ASTM C133, and ISO 5014.

II. Product Parameters

1. Maximum Testing Capacity: 10KN

2. Test Force Resolution: 1/200000

3. Relative Error of Indication: ±1% (within the range of 1% to 100% of full scale)

4. Relative error of test force indication repeatability: ≤1%

5. Loading speed range: 5-300 N/s

6. Test space (height x width): 180 x 165 mm

7. Maximum stroke: 40mm

8. Loading method: Electric

9. Power supply voltage (reliable grounding required): ~220V±10% 50Hz

10. Power: 80W

III. Main Features

Microcomputer-controlled, fully automatic testing process;

Stepper motor drive with precision ball screw loading system;

Real-time display of load, loading speed, test time, and test curves;

Automatic control of loading speed in accordance with relevant testing standards;

Load-holding function for stable and reliable testing;

Automatic storage of test results;

Supports test data inquiry and report printing;

Low-noise operation, energy-saving and environmentally friendly;

Compact structure, easy maintenance, and reliable performance;

Color LCD display with a simple and intuitive user interface.

IV. Test Procedure

1. Place the specimen on the support device;

2. Select the appropriate test program;

3. Start the test with one click;

4. The equipment automatically loads according to the set standards;

5. Real-time display of load, speed, time, and test curve;

6. Automatic recording and saving of test results after specimen failure;

7. Support for querying, exporting, and printing test results.

V. Product Advantages

High testing accuracy and good repeatability

Fully automated testing process, improving work efficiency

Suitable for testing various building materials

High-resolution force measurement system

Energy-saving and environmentally friendly, low operating costs

Stable performance, suitable for long-term continuous use

Meets international standards and export requirements
