The equipment uses high-precision sensors to collect test force values in real time and transmits them to an industrial computer system for data processing and analysis. The system automatically calculates the mechanical property parameters of the material and generates test curves and test reports, thus realizing a fully automated testing process.

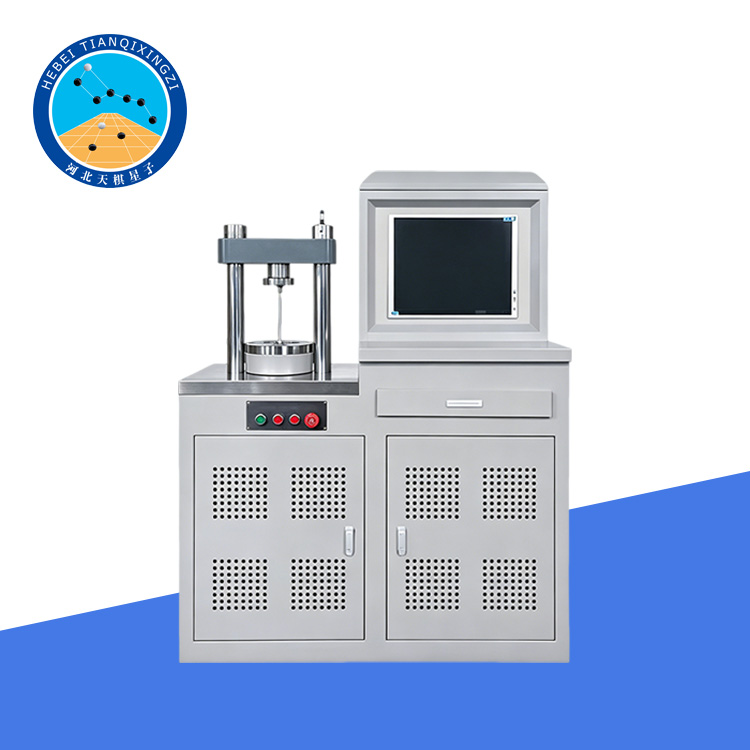

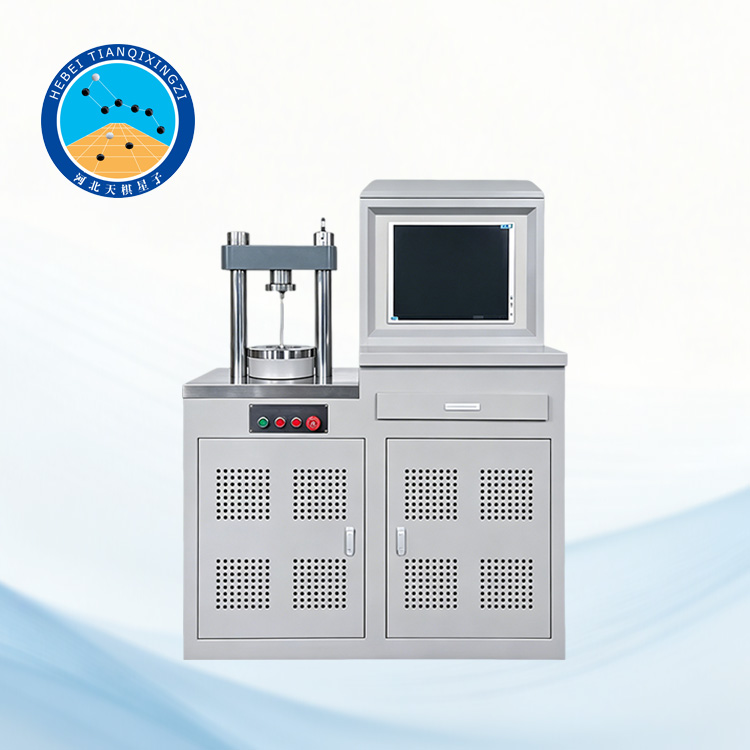

Servo Compression Testing Machine

Model:TDYE-300A

I. Product Introduction

The 300kN Compression Testing Machine adopts advanced servo control technology and an industrial-grade large-screen computer operating system. It is mainly used for compressive strength testing of cement, concrete, and other building materials, and can also be used for material mechanical property research and quality inspection.

The equipment integrates a high-precision measurement and control system with a stable hydraulic loading system. It features intelligent operation, powerful automatic data processing capability, and stable and reliable test results. The machine is widely used in construction engineering, building material manufacturing enterprises, quality inspection institutions, and scientific research laboratories.

II. Main Technical Parameters

1. Maximum test force: 300 kN

2. Test force measuring range: 4%–100% FS

3. Machine accuracy: Better than ±1%

4. Loading speed error: ±5%

5. Loading speed: Standard 2.4 kN/s (adjustable)

6. Maximum distance between compression platens: 180 mm

7. Upper platen size: 100 mm

8. Lower platen size: 185 mm

9. Overall dimensions: 1100 × 430 × 1470 mm

10. Machine weight: 370 kg

11. Power supply: 0.55 kW (three-phase four-wire system)

III. Product Features

1. Adopts Hengtian servo control system, equipped with industrial-grade large-screen computer, for intuitive and convenient operation.

2. Equipped with a high-precision force sensor, offering high sensitivity and effectively eliminating cylinder friction errors.

3. Employs a low-noise hydraulic power system, ensuring smooth operation and low noise.

4. Features phase sequence protection function, effectively preventing damage to electrical components caused by incorrect power phase sequence.

5. Automatic data acquisition and processing, supporting curve display, data storage, and printing.

6. Supports multiple test modes to meet the testing needs of different materials.

IV. Equipment Advantages

Servo closed-loop control for higher loading accuracy;

Industrial computer control system for more intelligent operation;

Automatic data storage and export improves experimental efficiency;

Compact structure suitable for laboratory and engineering site use;

Low-noise design enhances working environment comfort;

Stable and reliable, suitable for long-term continuous testing.
