This testing instrument is used to determine the Micro-Deval abrasion value of aggregates, evaluating their resistance to wear and mechanical degradation under wet conditions. It can also be applied to assess the abrasion resistance performance of fibers used in asphalt pavement, providing reliable data for material selection, mixture design, and quality control in road engineering.

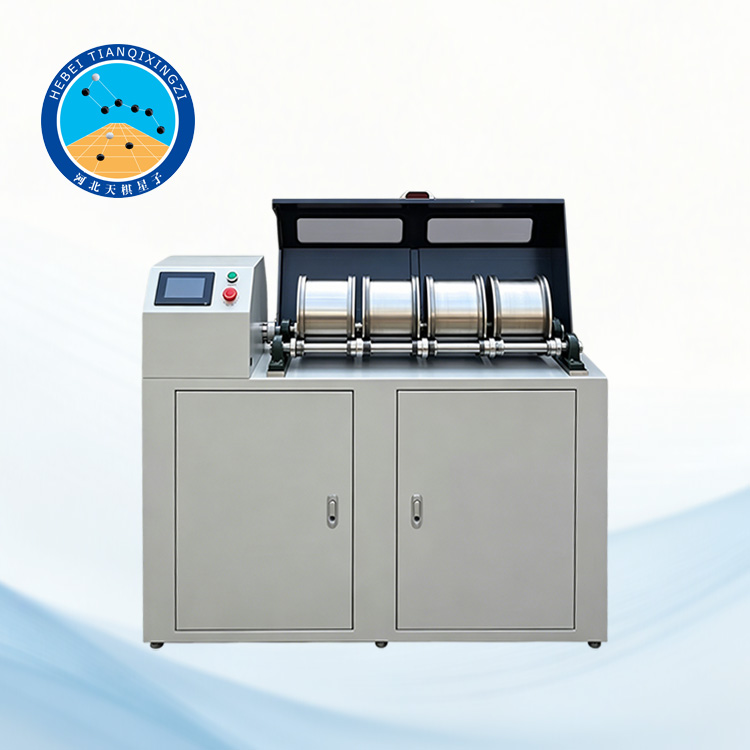

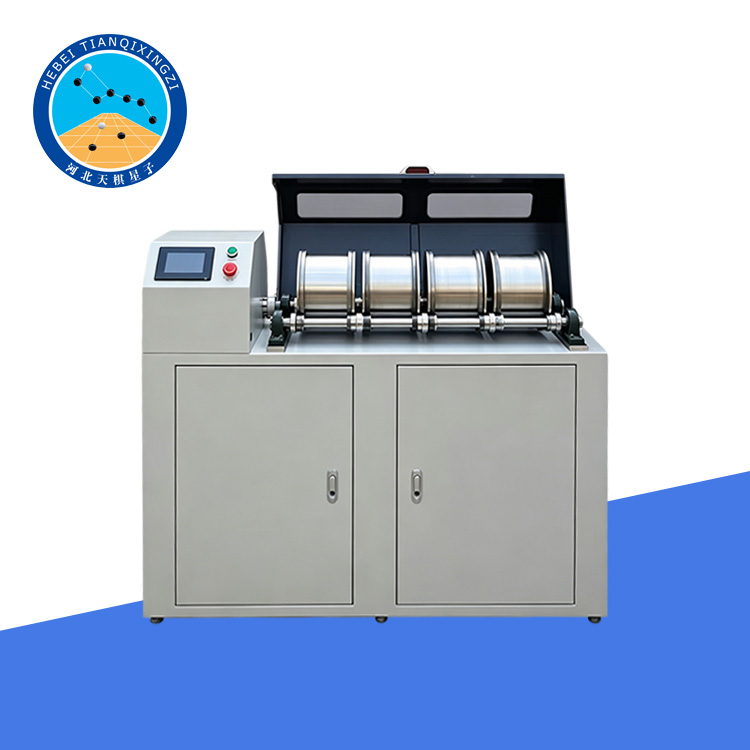

Micro-Deval Abrasion Testing Machine

Model:TDDF-533P

I. Product Introduction

The Micro-Deval Abrasion Testing Machine is designed and manufactured according to the relevant requirements of JT/T 533 "Fibers for Asphalt Pavement" and developed with reference to international standards such as EN 1097-1, ASTM D6928, and ASTM D7428. The test cylinder is made of high-quality stainless steel, which has good corrosion resistance and service life.

II. Product Features

1. Designed according to international Micro-Deval testing principles

2. Applicable for both aggregate and asphalt pavement fiber abrasion testing

3. Stainless steel test drum with high corrosion resistance

4. Stable rotation system with adjustable speed control

5. High-precision counting and timing system

6. Multiple steel ball sizes available for different test requirements

7. Easy operation and low maintenance design

8. Suitable for laboratory quality control and research applications

III. Technical Parameters

1. Test Cylinder

Inner Diameter: 200 mm ± 1 mm

Effective Inner Cavity Length: 154 mm ± 1 mm / 400 mm ± 2 mm (Optional)

Cylinder Wall Thickness: ≥3 mm

Smooth inner wall, no welding or protrusions

End Cap Thickness: ≥8 mm, with a sealed, leak-proof design

2. Drive System

Spindle Speed: 0–200 r/min steplessly adjustable

Standard Test Speed: 100 r/min ± 5 r/min

Stable rotation and reliable operation.

3. Control System

Rotation frequency setting: 0–999,999 r; Time setting: 0–999,999 s; Digital control system for precise operation.

4. Wearing Media

Steel ball diameter: 10 mm ± 0.5 mm, 18 mm ± 0.5 mm, 30 mm ± 0.5 mm (three specifications available)

5. Power Supply and Power

Motor power: 1 kW; Operating power: AC 220V, 50Hz

6. Dimensions

1500 × 600 × 1200 mm

IV. Application Scope

1. Testing the abrasion resistance of fibers for asphalt pavement

2. Testing the durability and abrasion resistance of aggregates

3. Quality control of road engineering materials

4. Laboratory material performance research

5. Use in engineering testing and research institutions
