The Asphalt Pavement Fiber Air Jet Sieve Analyzer is a precision laboratory instrument designed for particle size distribution and passing rate testing of cellulose and mineral fibers used in asphalt mixtures. Utilizing air jet sieving technology, it ensures efficient dispersion and accurate analysis of fine fibers and powders that are difficult to test with conventional sieving methods.

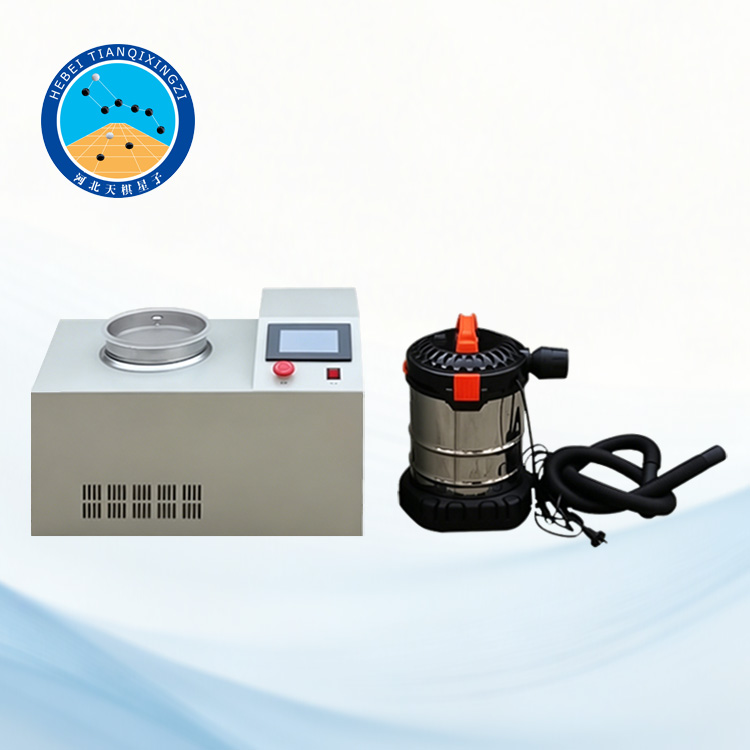

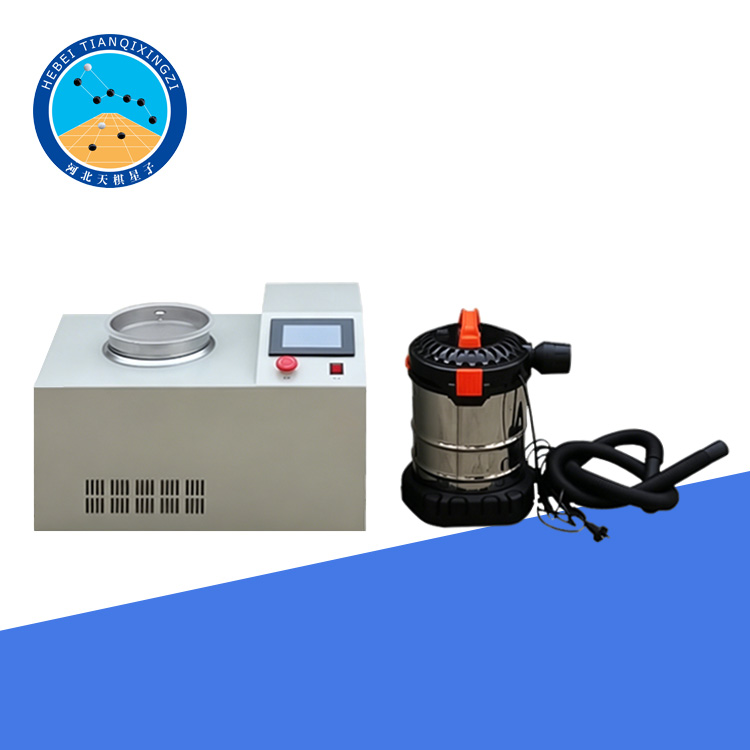

Asphalt Fiber Air Jet Sieve Analyzer

Model:TDJT533-A

I. Product Introduction

The Asphalt Pavement Fiber Air Jet Sieve Analyzer is a professional testing instrument designed and manufactured in accordance with the technical requirements for “fiber stabilizers for asphalt pavements” proposed by the Ministry of Transport. It is mainly used for air jet sieving tests of flocculated cellulose fibers and mineral fibers to determine key technical indicators such as particle size distribution and passing rate, thereby ensuring the quality stability and performance of fibers used in asphalt mixtures.

In addition to asphalt pavement fiber testing, this equipment can also be used for analyzing dry powder materials that are difficult to test by conventional sieving methods. It is widely applied in pharmaceutical, food, chemical, and industrial powder fields, making it a versatile air jet sieve analysis instrument.

II. Application Scope

This instrument is suitable for particle size analysis and sieving testing of the following materials:

Fiber stabilizers for asphalt pavement (lignin fiber, mineral fiber, etc.)

Various fine powders and dry powder materials

Cement, fly ash, and mineral powders

Pharmaceutical powders and food additives

Chemical raw materials, resins, and coatings

Rubber, plastics, graphite, and clay powders

Widely used in road engineering material testing and industrial powder quality control.

III. Technical Parameters

1. Air Jet Sieve Specifications:

Sieve opening: 0.15 mm

Size: Φ200 mm × 48 mm standard sieve

2. Nozzle Rotation Speed: Fixed at 35 rpm

3. Nozzle Gap: 2 mm

4. Sieving Range: 20 μm – 5000 μm

5. Timing Range: 0 – 99 min 59 sec

6. Maximum Sample Load: 2000 g

7. Control System: LCD color touchscreen display with intelligent touch operation

8. Power Supply: AC 220V ±5%, 50Hz

9. Dimensions: 440 × 400 × 400 mm

10. Net Weight: 50 kg

IV. Product Features

Utilizes airflow sieving technology, ensuring uniform fiber dispersion and high sieving efficiency;

Suitable for fine powders and fibrous materials that are difficult to detect using traditional sieving methods;

Excellent repeatability and high accuracy in test results;

Intelligent touchscreen control for simple and intuitive operation;

Wide range of applications, suitable for powder testing in multiple industries;

Compact structure, stable operation, suitable for laboratory use.
