The Stainless Steel Bulk Cement Sampler is designed for collecting representative cement samples for quality control, inspection, and laboratory testing. Made of durable 304 stainless steel, it features a Φ30 mm sampling tube available in 1000 mm, 1500 mm, and 2000 mm lengths. Its rotating sampling tube and locking handle provide convenient and controlled cement sampling, making it suitable for cement plants, construction material laboratories, quality inspection facilities, and research institutions.

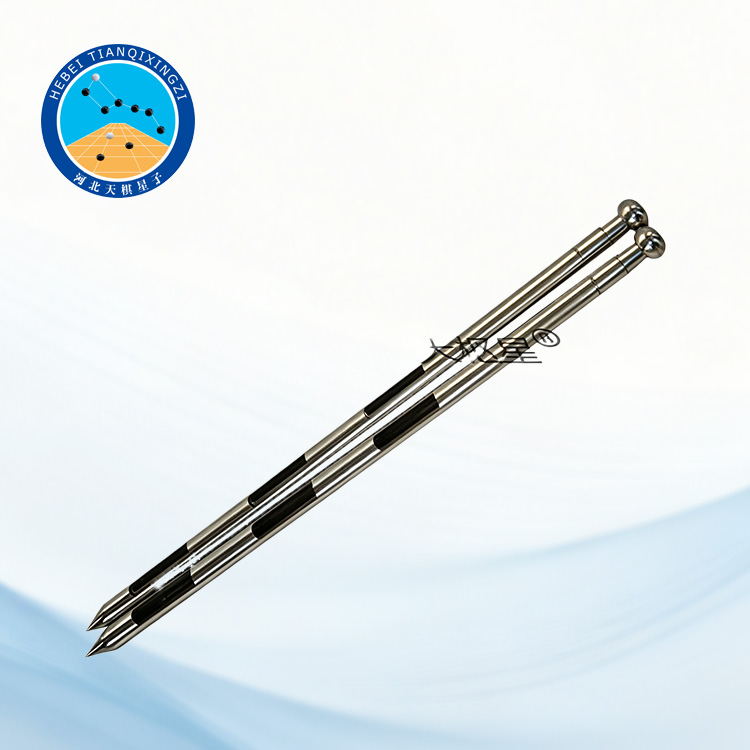

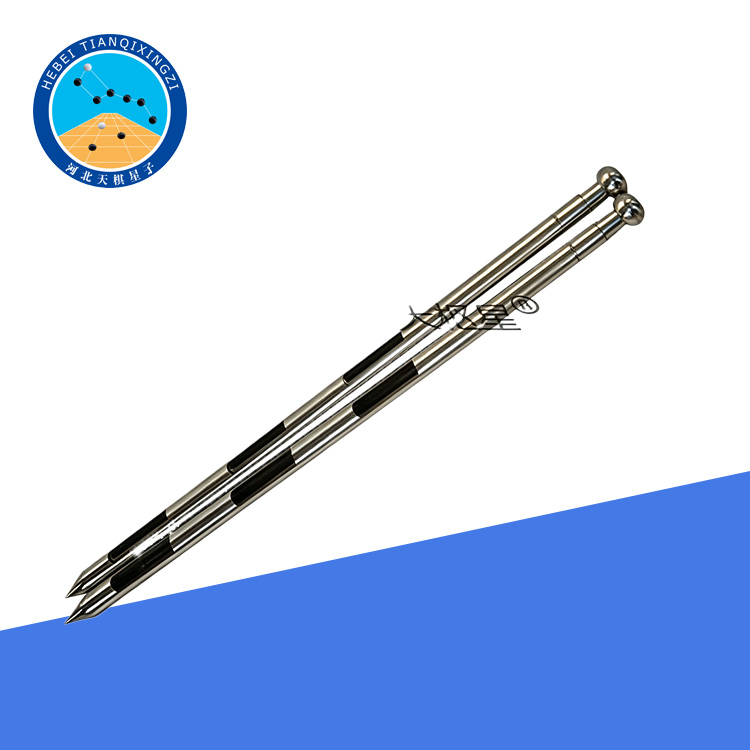

Stainless Steel Bulk Cement Sampler

Model: TD501-2

I. Product Introduction

The Bulk Cement Sampler is designed for sampling bulk cement during quality control, inspection, and laboratory testing. It is suitable for collecting representative cement samples from different locations to ensure the sample is clean, dry, and representative of the material being tested.

II. Technical Specifications

Material: 304 Stainless Steel

Diameter: Φ30 mm

Available Lengths: 1000 mm, 1500 mm, and 2000 mm

III.  Operating Procedure

1. Hold the cement sampler firmly with both hands and insert the sampling tube into the cement to the required depth.

2. Rotate the sampler handle and sampling tube to close the sampling openings. Lock the handle securely to prevent the openings from changing position during withdrawal.

3. Carefully withdraw the sampler from the cement.

4. Hold the sampler vertically over a clean, dry cement sample container or standard sample storage container.

5. Release the locking handle and rotate the outer sampling tube to open the sampling ports, allowing the collected cement sample to flow into the container.

Sampling Notes:

• Select sampling locations from at least 20 different positions to obtain a representative composite sample.

• Insert the sampling tube to an appropriate depth at each selected location.

• Cover the air vent with your thumb before carefully withdrawing the sampling tube.

• Transfer the collected cement sample into a clean, dry, contamination-resistant container.

• For each designated sampling unit (1/10), collect at least 6 kg of cement from one bag, where applicable to the applicable sampling procedure.

• Avoid exposure of the sample to moisture, dust, or other contaminants during sampling, transfer, and storage.

IV. Product Features

1. 304 Stainless Steel Construction: Made of corrosion-resistant 304 stainless steel, providing good durability and easy cleaning.

2. Long Sampling Tube: Available in 1000 mm, 1500 mm, and 2000 mm lengths to meet different sampling depth requirements.

3. Simple Operation: The rotating sampling tube and locking handle allow the sampling ports to be opened and closed conveniently during sampling.

4. Representative Sampling: Designed to collect cement samples from different positions and depths, helping obtain a more representative sample for subsequent testing.

5. Easy to Clean: The smooth stainless steel surface helps reduce material retention and cross-contamination between samples.

6. Portable Design: The sampler is lightweight and easy to handle, making it suitable for routine sampling operations in cement plants, laboratories, and quality inspection facilities.

V. Applications

The Stainless Steel Bulk Cement Sampler can be used for cement sampling in:

Cement manufacturing plants;

Cement storage and distribution facilities;

Construction material laboratories;

Quality inspection laboratories;

Construction sites;

Research and testing institutions;

Cement receiving and acceptance inspection.

It is suitable for collecting cement samples for quality control, acceptance inspection, physical property testing, chemical analysis, and laboratory evaluation.

VI. Why Choose TD501-2 Bulk Cement Sampler?

The TD501-2 Bulk Cement Sampler combines a durable stainless steel construction with a simple mechanical sampling mechanism. Its multiple length options make it suitable for different sampling conditions, while the rotating tube design facilitates controlled collection and discharge of cement samples.

It is a practical sampling tool for laboratories, cement manufacturers, construction material testing organizations, and quality control departments requiring convenient and repeatable cement sampling.
