Products Description
The product features easy operation, high mixing efficiency, and convenient cleaning, making it an ideal laboratory concrete mixing and testing equipment. It is widely used in laboratories of construction research institutes, construction companies, and concrete component manufacturers. It is suitable for mixing ordinary concrete, lightweight concrete, and dry hard concrete, and can also be applied in laboratories of other industries for vibration compaction of various materials.

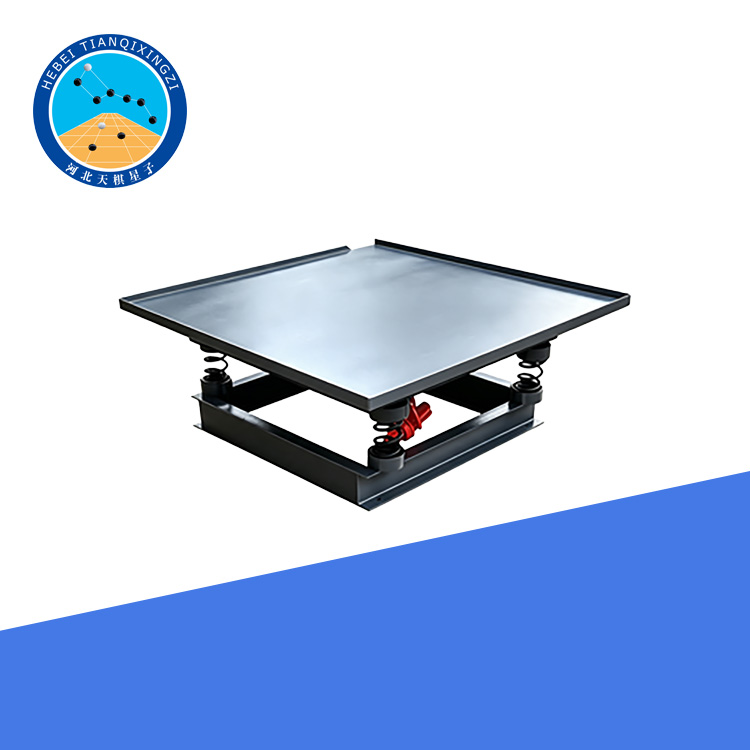

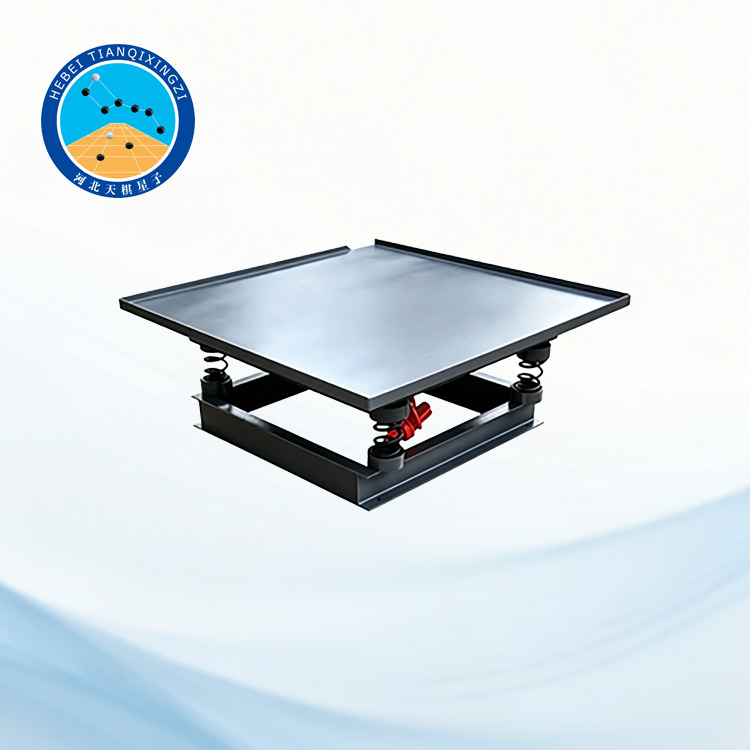

Laboratory Vibrating Table for Concrete
Model:TD245-2
I. Product Overview
The Concrete Vibrating Table is developed and manufactured by our company in accordance with JG244-2009 Concrete Mixer for Laboratory Use issued by the Ministry of Housing and Urban-Rural Development of the People's Republic of China.
The product complies with the technical requirements for vibrating tables specified in T0521-2005 Mixing Method and Field Sampling Method of Cement Concrete Mixture of JTG E30-2005 Test Methods of Cement and Concrete for Highway Engineering.
Reference or Applicable Standards:
ASTM C31/C31M, ASTM C192/C192M, ASTM C1176/C1176M, EN 12390-2, ISO 1920-3, BS EN 12390-2
II. Technical Specifications
Model | TD245-0.5 | TD245-0.8 | TD245-1 | TD245-2 |
Table Surface Dimensions (mm) | 500 × 500 | 800 × 800 | 1000 × 1000 | 1000 × 2000 |
Vibration Frequency (times/min) | ≈2800 | ≈2800 | ≈2800 | ≈2800 |
Amplitude (mm) | 0.3–0.6 | 0.3–0.6 | 0.3–0.6 | 0.3–0.6 |
Vibrator Power (W) | 0.55 | 1.1 | 1.1 | 3 |
Maximum Load Capacity (kg) | 75 | 200 | 250 | 500 |
Instrument Weight (kg) | 65 | 140 | 200 | 370 |
III. Working Principle
The Laboratory Vibrating Table for Concrete uses a vibration motor as the vibration source to generate uniform vertical vibration. During operation, the vibration force is transmitted to the table surface, causing the concrete mixture or test specimens placed on the table to be compacted evenly.
The vibrating table helps remove air bubbles from fresh concrete, improve the density and uniformity of specimens, and ensure reliable test results. It is widely used for the preparation and compaction of concrete test specimens according to relevant testing procedures.
IV. Product Features
1. Uniform Vibration Performance:
The high-frequency vibration system provides stable and consistent vibration, ensuring effective compaction of concrete specimens.
2. Adjustable Models for Different Applications:
Multiple table sizes and load capacities are available to meet different laboratory testing requirements.
3. High Structural Stability:
The heavy-duty steel structure minimizes vibration loss and ensures stable operation during testing.
4. Easy Operation:
Simple control and convenient operation make the equipment suitable for laboratories, research institutions, and construction material testing facilities.
5. Durable and Reliable Design:
The robust construction provides excellent durability and long service life under frequent laboratory use.
6. Wide Application Range:
Suitable for vibration compaction of concrete, cement mortar, paver molds, and other construction material specimens.
V. Applications
1. The Concrete Vibrating Table is widely used in:
Concrete testing laboratories;
Cement testing laboratories;
Construction material research institutes;
Highway and bridge engineering laboratories;
Concrete component manufacturers;
Universities and scientific research institutions.
2. It is mainly used for:
Concrete specimen preparation;
Concrete cube and cylinder molding;
Cement concrete compaction;
Mortar and other material vibration forming;
Laboratory material density improvement tests.
