The test chamber integrates water immersion, drainage, freezing, and drying into a single automated system. Users can easily set the temperature, test duration, and other parameters for each stage through the intelligent control program, enabling fully automatic operation throughout the entire testing process. Its intelligent design significantly reduces manual intervention, minimizes human error, and ensures more accurate, reliable, and repeatable test results.

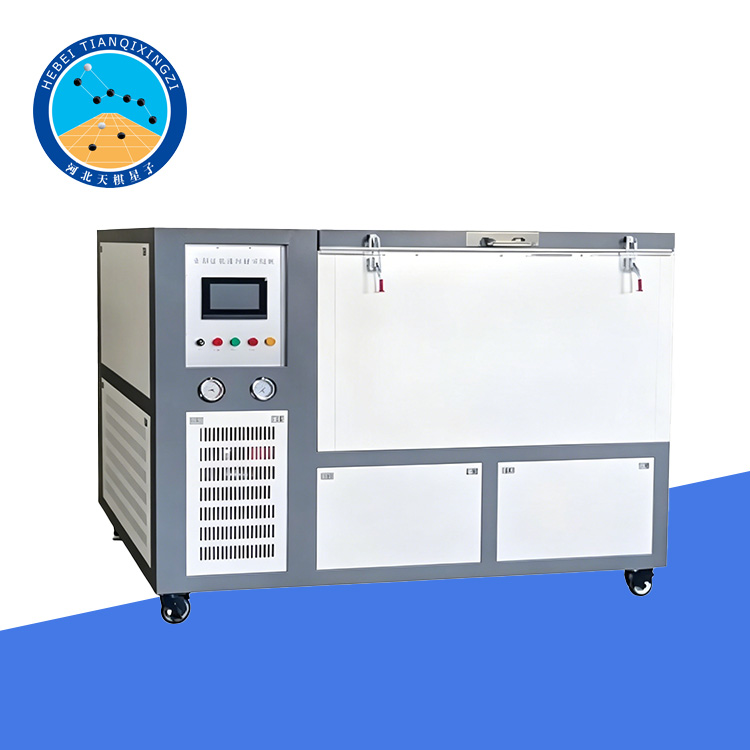

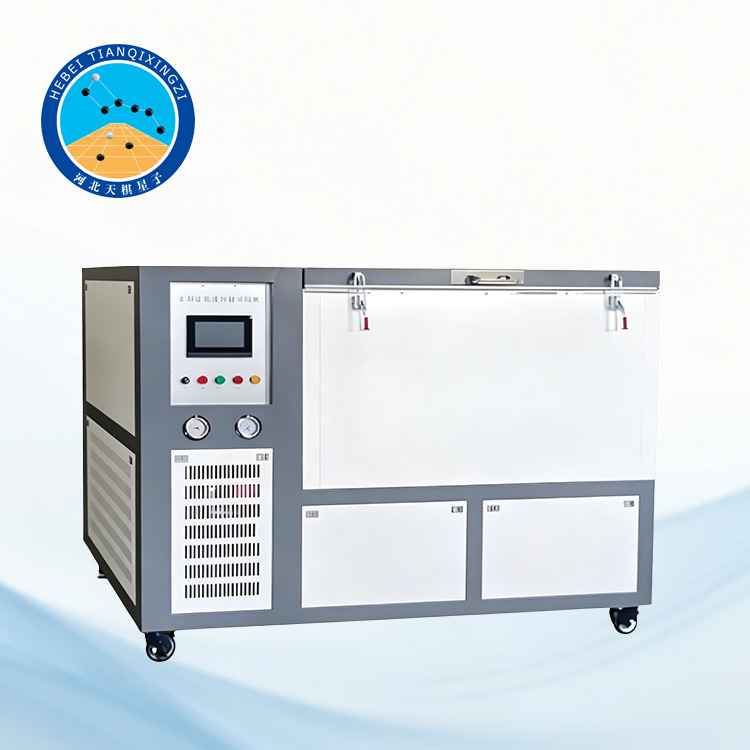

Wood-Based Panel Immersion Test Chamber

Model:TD17657-JD

I. Product Overview

The TD17657-JD Fully Automatic Intelligent Wood-Based Panel Immersion Test Chamber is an advanced testing system independently developed and manufactured by Hebei Tianqixingzi Inspection Equipment Co., Ltd. It is specifically designed for the immersion-freezing-drying pretreatment used in the determination of the static bending strength of wood-based panels in accordance with GB/T 17657 Test Methods of Evaluating the Properties of Wood-Based Panels and Surface Decorated Wood-Based Panels, with reference to EN 321. The equipment is suitable for the physical and mechanical performance testing of various types of wood-based panels.

II. Technical Parameters

1. Equipment Model: TD17657-JD

2. Temperature Control Range:

- Temperature-controlled water bath: Ambient temperature to 100℃, temperature control accuracy ±2℃

- Freezer: -20℃ to -10℃, temperature control accuracy ±2℃

- Drying oven: Ambient temperature to 120℃, temperature control accuracy ±2℃

3. Time Control Range: 0～99 hours 59 minutes, time setting accuracy 1 minute

4. Water tank capacity: 40 L

5. Low-temperature chamber capacity: 50 L

6. Drying chamber capacity: 50 L

7. Power supply: AC 220 V ±10%, 50 Hz

8. Rated Power: 3.5kW

9. Equipment Dimensions: 1500mm × 800mm × 1200mm

10. Equipment Weight: Approximately 180kg

III. Test Operation Guide

3.1 Equipment Start-Up and Preparation

1. Power connection: Connect the equipment power plug to a properly rated power outlet and ensure that the grounding is reliable.

2. Check water level in the tank: Add an appropriate amount of potable water (tap water) into the temperature-controlled water tank. The water level should be sufficient to fully immerse the specimens, with a depth of 10–20 mm above the specimen surface.

3. Preheating: Set the required temperatures for the temperature-controlled water tank, freezing chamber, and drying chamber according to the test requirements, then start the system and preheat the equipment until the set temperatures are reached.

IV. Test Program Settings for Various Panel Types

4.1 Thin Panels (Thickness t < 7 mm), Type I Test

1. Immersion:

Fill the temperature-controlled water tank with an appropriate amount of potable water and heat it to a gentle boil (approximately 100°C). Immerse the specimens in boiling water for 3 hours.

2. Freezing:

Remove the specimens, wipe off surface moisture, and place them into a low-temperature test chamber at (-20 ± 2)°C for 24 hours.

3. Drying:

Take the specimens out of the low-temperature chamber and place them in a drying chamber at (103 ± 2)°C for 3 hours.

4. Cooling:

After drying, remove the specimens and allow them to cool at room temperature for 30 minutes.

4.2 Thin Panels (Thickness t < 7 mm), Type II Test

1. Immersion:

Fill the temperature-controlled water tank with an appropriate amount of potable water and heat it to (63 ± 2)°C. Immerse the specimens in water at (63 ± 2)°C for 3 hours.

2. Freezing:

Remove the specimens, wipe off surface moisture, and place them into a low-temperature test chamber at (-20 ± 2)°C for 24 hours.

3. Drying:

Take the specimens out of the low-temperature chamber and place them in a drying chamber at (63 ± 2)°C for 3 hours.

4. Cooling:

After drying, remove the specimens and allow them to cool at room temperature for 30 minutes.

4.3 Thick Panels (Thickness t ≥ 7 mm), Type I Test

1. Immersion:

Fill the temperature-controlled water tank with an appropriate amount of potable water and heat it to a gentle boil (approximately 100°C). Immerse the specimens in boiling water for 6 hours.

2. Freezing:

Remove the specimens, wipe off surface moisture, and place them into a low-temperature test chamber at (-20 ± 2)°C for 24 hours.

3. Drying:

Take the specimens out of the low-temperature chamber and place them in a drying chamber at (103 ± 2)°C for 6 hours.

4.Cooling:

After drying, remove the specimens and allow them to cool at room temperature for 30 minutes.

4.4 Thick Panels (Thickness t ≥ 7 mm), Type II Test

1. Immersion:

Fill the temperature-controlled water tank with an appropriate amount of potable water and heat it to (63 ± 2)°C. Immerse the specimens in water at (63 ± 2)°C for 6 hours.

2. Freezing:

Remove the specimens, wipe off surface moisture, and place them into a low-temperature test chamber at (-20 ± 2)°C for 24 hours.

3. Drying:

Take the specimens out of the low-temperature chamber and place them in a drying chamber at (63 ± 2)°C for 6 hours.

4. Cooling:

After drying, remove the specimens and allow them to cool at room temperature for 30 minutes.
