Computerized fully automatic constant stress compression testing machine is designed for accurate and stable compression testing of construction materials such as concrete, cement, and rock. It features advanced computer control and automatic loading system, ensuring smooth and continuous stress application during the test process.

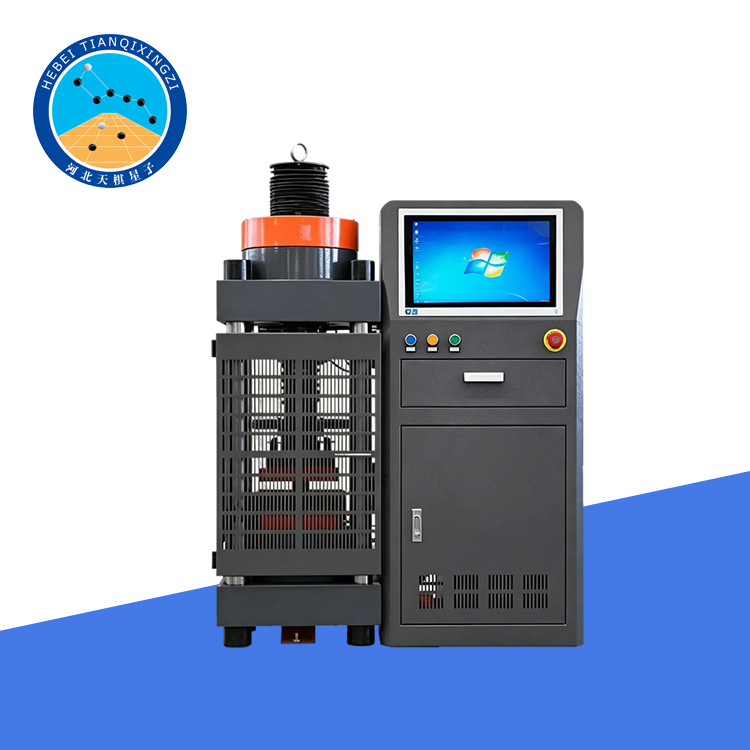

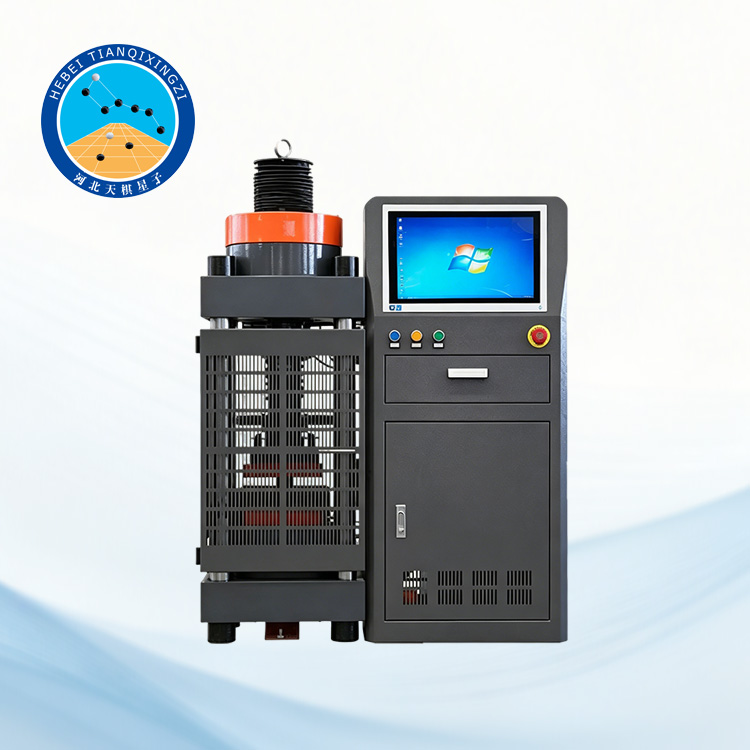

Computerized Constant Stress Compression Testing Machine

Model:TDYE-2000LZH

I. Product Introduction

This series of testing machines is designed for compressive strength testing of cement, concrete, and rock materials. With appropriate fixtures and measuring devices, it can also be used for concrete splitting tensile tests, flexural strength tests, and static elastic modulus tests. In addition, it is suitable for compression and end-face testing of metallic materials. The system can be expanded with multiple displacement or deformation measurement channels according to user requirements, meeting various complex testing applications.

The equipment complies with GB/T 7314-2005 “Metallic Materials — Room Temperature Compression Test Method”, GB/T 50081-2002 “Standard for Test Methods of Mechanical Properties of Ordinary Concrete”, and GB/T 50266-2013 “Test Methods for Engineering Rock Mass”.

Referenced or applicable international standards: ISO 604, ASTM E9, ASTM C39, and ISRM Suggested Methods.

II. Functional Features

1. Electric lead screw adjusts the testing space, providing convenient and precise positioning.

2. Computer-controlled testing process with real-time display of force-time curves and comparison functions.

3. Constant and adjustable loading rate to meet different testing requirements.

4. Compact structure with one-click operation to complete the entire test process efficiently.

5. Automatic generation and printing of complete A4 test reports.

6. Supports network connection with central laboratory for data uploading and sharing.

7. A new-generation upgraded product with stable performance and advanced technology.

III.Technical Parameters

Maximum test force: 2000 kN

Accuracy class of testing machine: Class 1

Relative error of indicated test force: within ±1%

Test force measurement range: 10%–90% FS (full range, no grading)

Main machine structure: four-column structure

Distance between columns (mm): 260

Maximum distance between upper and lower compression plates (mm): 320

Compression plate size (mm): Upper/Lower plates: 220 × 250

Piston stroke (mm): 50

Piston movement control: single-acting cylinder

Overall machine dimensions (L × W × H, mm): 950 × 600 × 1200

Packing dimensions (L × W × H, mm): 1100 × 670 × 1520

Total power (kW): 1

Weight (kg): 1200

IV.Application areas and advantages

1.This machine is widely used in:

Construction material testing laboratories

Highway and bridge engineering quality inspection

Cement and concrete production quality control

Geological and rock mechanics research

Universities and scientific research institutions

Metal material compression testing applications

2.Advantages:

High precision load measurement and stable performance

Easy operation with fully automatic test process

Strong adaptability for multiple material testing

Safe and reliable hydraulic system design

Supports laboratory digital management and data traceability

Suitable for both routine testing and research applications
