The Construction Waterproof Asphalt Joint Sealant Heat Resistance Tester is used to evaluate the heat resistance stability of building waterproof asphalt joint sealing compounds under high-temperature conditions. It is suitable for assessing the material’s flow behavior, deformation, and resistance to sagging when exposed to heat.

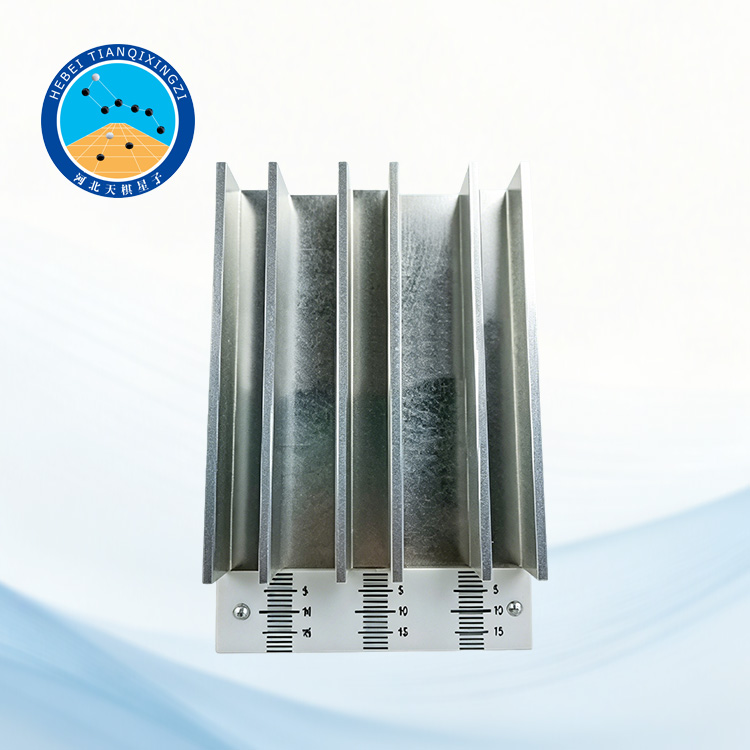

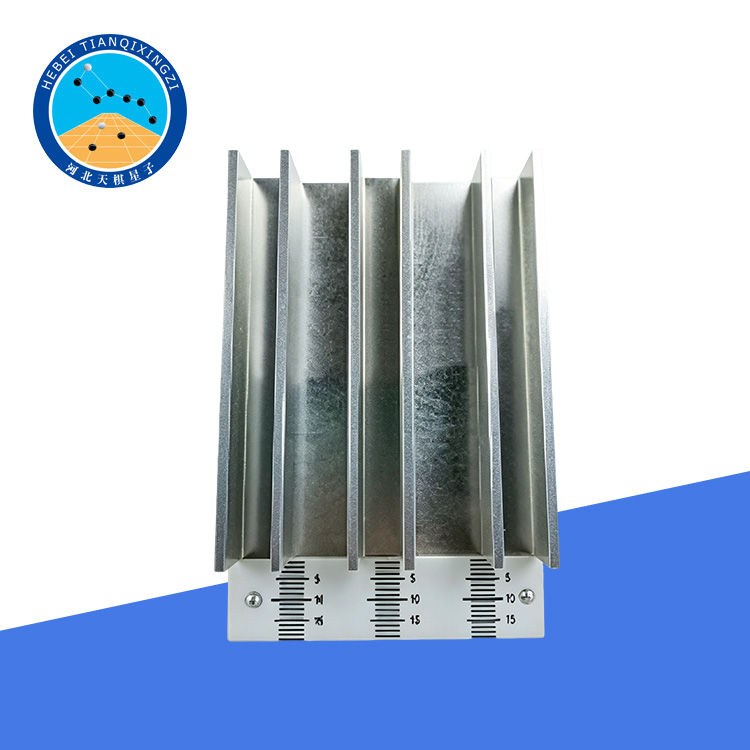

Asphalt Joint Sealant Heat Resistance Tester

Model:JCT20

I. Product Introduction

This equipment is designed and manufactured in accordance with JC/T 207-2011 “Building Waterproof Asphalt Joint Sealing Compound”, and can meet the laboratory testing requirements of building waterproof materials, asphalt sealing materials, and pavement joint sealing materials.The equipment features a simple structure, easy operation, and stable test performance. It is widely used in manufacturers of building waterproof materials, quality inspection institutions, research institutes, and engineering laboratories.

Reference or Applicable Standards: JC/T, ASTM D6690, EN 14188-1, AASHTO M 301

II. Product Applications

This instrument is mainly used for:

Heat resistance testing of building waterproof asphalt caulking compound

High-temperature stability testing of hot-fill sealant

Evaluation of the anti-flow performance of asphalt caulking materials

Material quality control and product development testing

Through testing, the instrument can effectively evaluate the construction adaptability and long-term performance of materials in high-temperature environments.

III. Main Technical Parameters

1. Metal Channel Internal Dimensions: 25*100mm

2. Support Angle: 45°

3. Applicable Material: Waterproof Asphalt Joint Sealant

IV. Product Features

1. Meets Industry Standards: Designed strictly according to the technical requirements of JC/T 207-2011, ensuring reliable test results.

2. Stable Structure: Utilizes a metal structure design, offering high durability and suitability for long-term laboratory use.

3. Simple Operation: Convenient testing procedures allow laboratory personnel to quickly complete tests.

4. Good Test Repeatability: Effectively improves the stability and consistency of test data.

5. Wide Application Range: Applicable to building waterproofing, road engineering, bridge engineering, and asphalt sealing materials.
