The Slurry Seal Breaking Time Test Mold is used to determine the demulsification time (breaking time) of slurry seal mixtures under specified conditions. It is designed to evaluate the construction performance and serviceability of emulsified asphalt slurry mixtures.

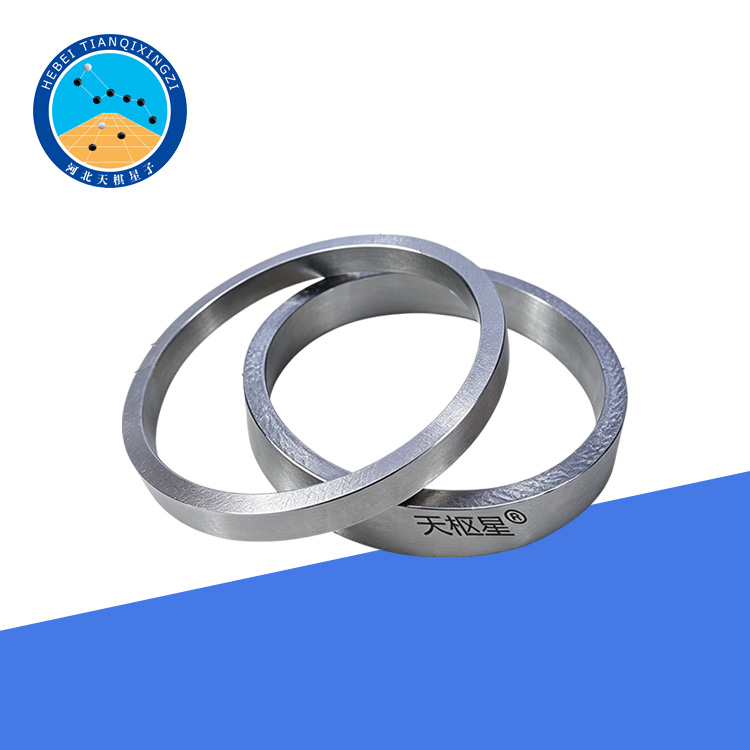

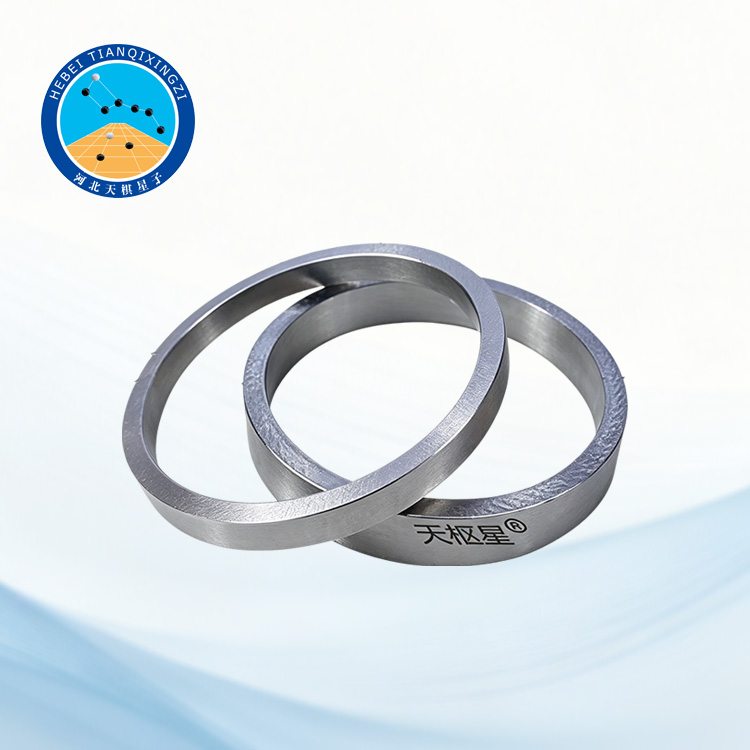

Slurry Seal Breaking Time Test Mold

Model:TD753-M6

I.Product Introduction

The TD753-1 Slurry Seal Breaking Time Test Mold is a specialized testing device developed by Hebei Tianqixingzi Inspection Equipment Co., Ltd. in accordance with the latest industry standard JTG 3410 (T0753-2025 Slurry Mixture Breaking Time Test).This instrument is designed to determine the time required for a slurry mixture to transition from a workable state to an initial setting state. It is an important parameter for slurry seal mix design and construction quality control.

The product is developed with reference to the following international standards:JTG 3410, ASTM D3910, and EN 12273.

II.Test Principle

The slurry mixture is placed into a standard ring-shaped test mold and spread into a uniform thin layer under specified conditions. The demulsification process of the emulsified asphalt is then observed, and the time required for the mixture to change from a workable state to a non-flowing state is recorded.

This time is defined as the Breaking Time, which reflects the following key performance characteristics:

Demulsification properties of emulsified asphalt;

Workability time during construction;

Setting rate of the slurry seal;

Construction adaptability and quality stability.

III.Technical Parameters

1. Ring Test Mold

Inner diameter: 60 mm

Thickness: 6 mm or 10 mm

2. Specification Models

Φ60 × 6 mm

Φ60 × 10 mm

Φ65 × 13 mm

Φ80 × 16 mm

3. Oil Felt Pad Size

152 mm × 152 mm

IV. Product Features

Standardized structural design ensures good repeatability of test results;

Complies with domestic and international highway engineering testing standards;

Simple operation, suitable for rapid laboratory testing;

Corrosion-resistant materials ensure long service life;

Suitable for various slurry seal and emulsified asphalt systems;

Improves the accuracy and comparability of test data.

V. Scope of Application

Determination of demulsification time for slurry seal mixtures;

Evaluation of construction performance of emulsified asphalt mixtures;

Asphalt mix design experiments;

Road engineering quality inspection;

Scientific research and teaching experiments.
