This instrument is mainly used for the mix design of slurry seal mixtures. It is used to determine the appropriate water content, ensuring that the mixture has good workability during construction and satisfactory pavement performance.

Slurry Seal Consistency Tester

Model:TD751-1

I.Application Scope

The Emulsified Asphalt Slurry Seal Consistency Tester (also known as Emulsified Asphalt Consistency Tester) is used to determine the consistency and workability of emulsified asphalt slurry seal mixtures. It is applied to evaluate the construction performance of the mixture during the paving process.This instrument complies with JTG 3410-2025 (T0751-2025 Slurry Mixture Consistency Test).

Reference or Applicable Standards:

JTG 3410,EN 12274-3,ASTM D3910,ISSA TB-106

II.Technical Parameters

Metal Truncated Cone:

Top diameter 38 mm, bottom diameter 89 mm, height 76 mm

Metal Base Plate:

Thickness 4 mm, with concentric circular scale lines, spacing 0.5 cm

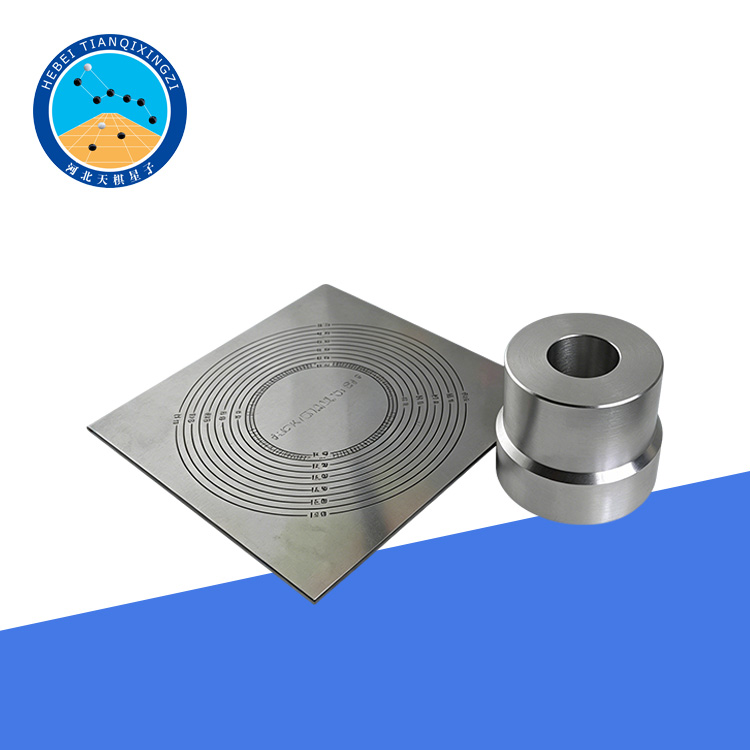

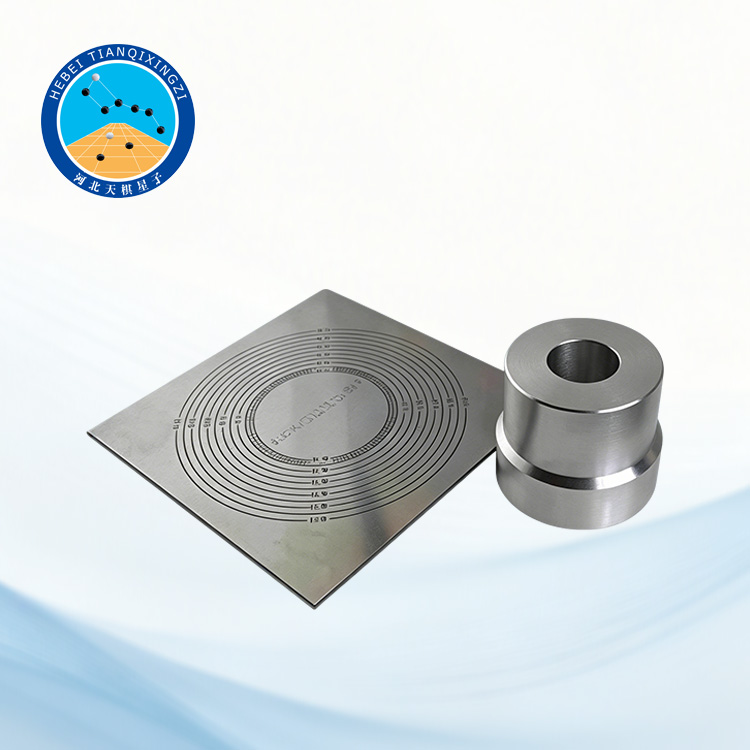

III. Instrument Composition

Metal Truncated Cone;

U-shaped Support Pad;

Graduated Base Plate.

IV. Product Features

Simple structure, easy operation, suitable for both laboratory and field use;

The truncated cone is made of aluminum alloy, with an attractive appearance and corrosion resistance;

The base plate is made of stainless steel, sturdy and durable, with a long service life;

The base plate scale is clear, facilitating quick and accurate readings;

Stable test results with good repeatability;

Suitable for various slurry seal mixture systems.

V. Engineering Significance

The consistency of the slurry seal mixture is one of the key indicators affecting construction quality:

Too low consistency → prone to flowing and segregation

Too high consistency → difficult to spread and construction

This instrument can effectively control the workability of the mixture, improve the scientific nature of mix design, and ensure stable construction quality.
