The Asphalt Mixture Indirect Tensile Tester is used to determine the indirect tensile strength and splitting resistance of asphalt mixtures under specified temperature and loading conditions. It evaluates the cracking resistance and structural performance of asphalt materials and is widely applied in road engineering, pavement material testing, and mix design.

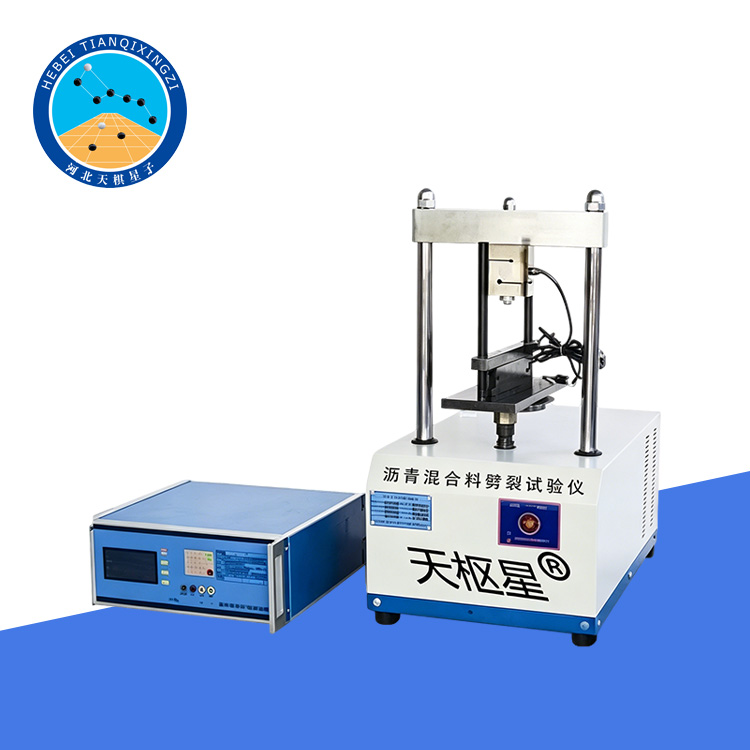

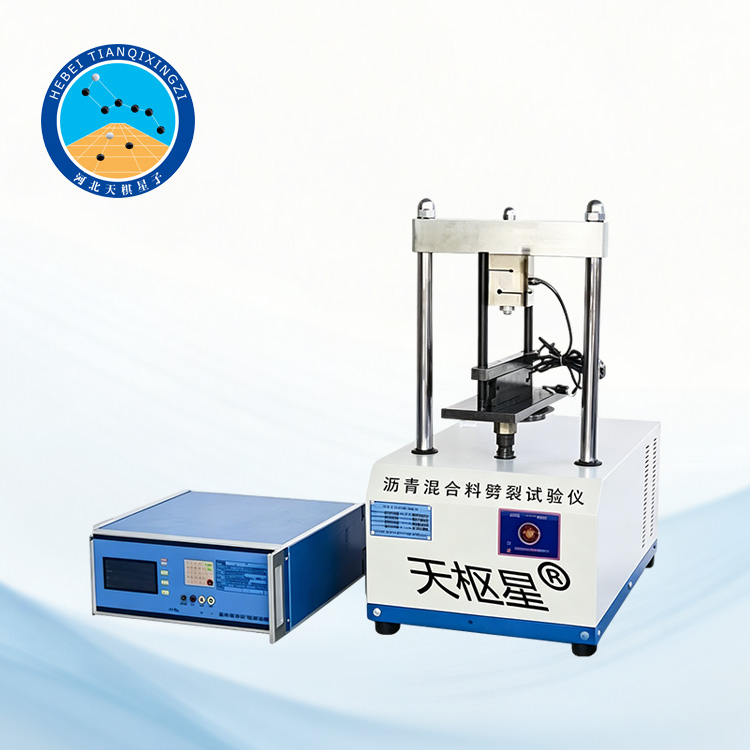

Asphalt Mixture Indirect Tensile Tester

Model:TD716-2

I. Product Introduction

This Asphalt Mixture Indirect Tensile Tester is independently developed and manufactured by Hebei Tianqixingzi Inspection Equipment Co., Ltd.. The equipment complies with JTG 3410-2025 Standard Test Methods of Asphalt and Asphalt Mixture for Highway Engineering (T0716-2025 Indirect Tensile Test of Asphalt Mixtures) and also refers to international standards such as ASTM D6931 and EN 12697-23.

This testing machine is used to determine the mechanical properties of asphalt mixtures under specified temperature and loading rate conditions, either at the stage of splitting failure or within the elastic range. It is also applicable for determining the mechanical design parameters of asphalt mixtures in pavement structural design and evaluating their low-temperature crack resistance performance.

II. Technical Parameters:

1.Loading rate: (50 ± 5) mm/min

2.Loading strip diameter: (101.6 ± 0.2) mm, (152.4 ± 0.2) mm

3.Maximum load: 50 kN, accuracy 1%

4.Displacement measurement range: 0–15 mm, resolution 0.01 mm, accuracy ±0.1 mm

5.Overall dimensions: 650 × 480 × 900 mm

6.Ambient temperature: ≤30°C

7.Relative humidity: ≤85%

8.Power consumption: 750 W

9.Net weight: 100 kg

10.Power supply: 220 V

III. Main Features:

Employs a high-precision loading control system, ensuring stable and reliable testing.

High displacement measurement accuracy, enabling precise acquisition of deformation data.

User-friendly interface, high degree of automation, and simplified testing process.

Reasonable structural design, stable operation, and convenient maintenance.

Meets various application needs in laboratory and engineering testing.

IV. Structural Composition

The equipment mainly consists of the following parts:

1. Loading System (Servo Control)

2. Test Frame Structure

3. Displacement Measurement System (High-Precision Sensor)

4. Indenter and Loading Bar Assembly

5. Data Acquisition and Control System

6. Operation Control Interface
