The Asphalt Mixture Gyratory Compactor is used for preparing high-density asphalt mixture specimens through precise gyratory compaction, ensuring uniform void distribution and accurate simulation of field pavement conditions. It is widely applied in laboratory testing for Superpave mix design, performance evaluation, and quality control of asphalt materials.

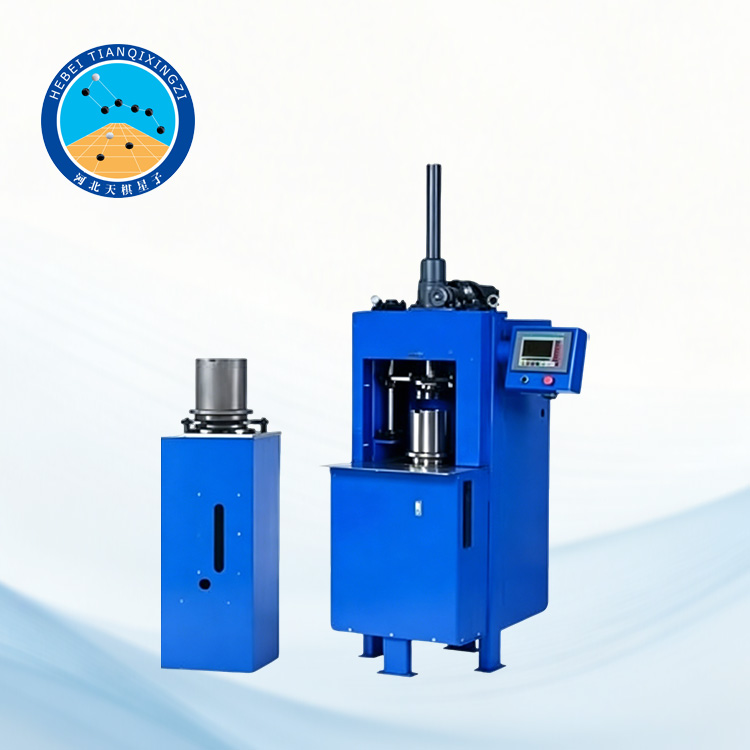

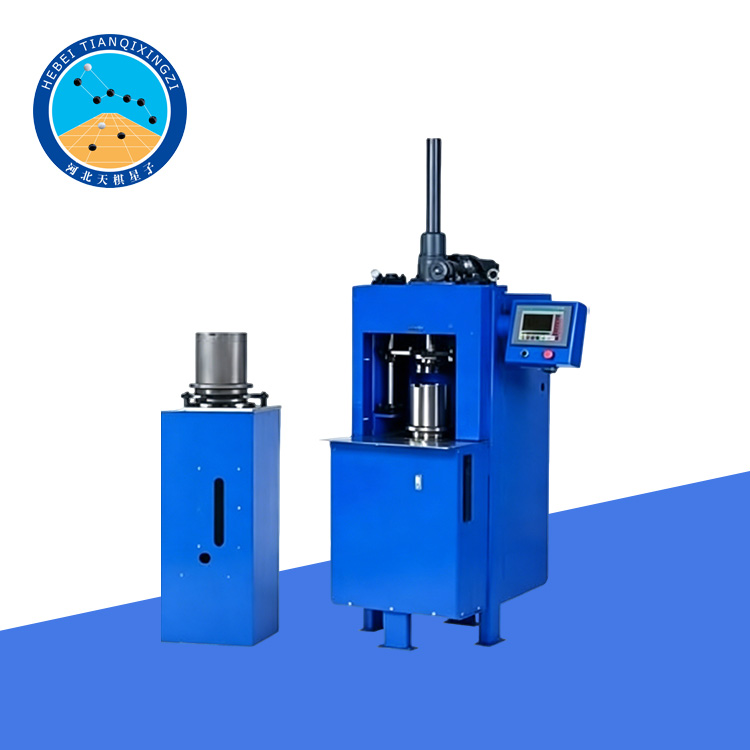

Asphalt Mixture Gyratory Compactor

Model:TD736-3

I.Product Introduction

The Asphalt Mixture Gyratory Compactor is a specialized testing instrument designed and manufactured in accordance with the Chinese transportation industry standard JT/T 724-2008 “Gyratory Compactor”, the industry standard JTG 3410-2025 “Standard Test Methods of Asphalt and Asphalt Mixture for Highway Engineering” (T0736-2011), and with reference to the international standard AASHTO T312.

This equipment adopts the gyratory compaction method to prepare asphalt mixture cylindrical specimens with diameters of φ100 mm or φ150 mm. It is widely used in laboratory testing for the physical and mechanical properties of asphalt mixtures, and serves as an essential specimen preparation device for highway engineering material testing and mix design.

II. Main Technical Features

1. This instrument conforms to the SPERPAVE standard of the Federal Hygiene and Environmental Protection Agency (FHWA) and can operate safely and reliably under given compaction pressure and rotational compaction angle.

2. This instrument uses a Siemens PLC from Germany as the core of its control system. The system has comprehensive protection functions and is capable of operating in complex working conditions.

3. This instrument uses a 7-inch industrial touchscreen as its human-machine interface. The interface is clear and highly visible, setting operating parameters is simple, and process data is displayed in real time. Test data can be saved in Excel format and downloaded to a USB flash drive.

4. This instrument is designed and manufactured with reference to imported equipment; its pressure device, sensors, bearings, and other key components are all original imported products.

5. This instrument has been tested by relevant national authoritative units, and the test results are consistent with similar imported equipment, demonstrating stable performance. It is considered a viable alternative to similar imported products.

6. The loading method is an electric actuator, resulting in fast response.

7. The operating interface is available in both Chinese and English, and can be switched.

III. Main Technical Parameters and Indicators

1. Pressure Range: (100～1000) Kpa, continuously adjustable

2. Pressure Accuracy: Less than ±60 Kpa (compaction times 1～5 times), less than ±18 Kpa (compaction times > 5 times)

3. Rotation Times: Forward rotation (according to the set compaction angle) 0～1000 times, Reverse rotation (compaction angle 0°) 0～500 times

4. Rotation Compaction Angle Range: 0.5°～2.0°, increasing in 0.01° increments (internal angle factory calibrated at 1.16°±0.02°)

5. Rotational compaction angle (inner angle) accuracy: less than ±0.01°

6. Rotational compaction displacement range: (0～300)mm

7. Specimen height range: (50～130)mm

8. Specimen diameter: Ф150mm (standard), Ф100mm (optional)

9. Rotational compaction displacement accuracy: less than 0.10mm

10. Rotation speed: (30±0.5) rpm

11. Overall dimensions: 900mm×900mm×1900mm (L×W×H)

12. Instrument outer packaging box dimensions: 1000mm×1000mm×2000mm (L×W×H)

13. Mold weight: 7.5kg

14. Total weight: 500kg

15. Power supply: AC 380V, 50Hz, 15A (three-phase four-wire system, with neutral wire)
