Handheld Concrete Strain Gauge

Model: TDSH-VB1

I. Product Overview

Long-term deformation of building structures can be difficult to measure using conventional strain gauges due to changes in environmental conditions, such as vibration, moisture, and high temperatures.

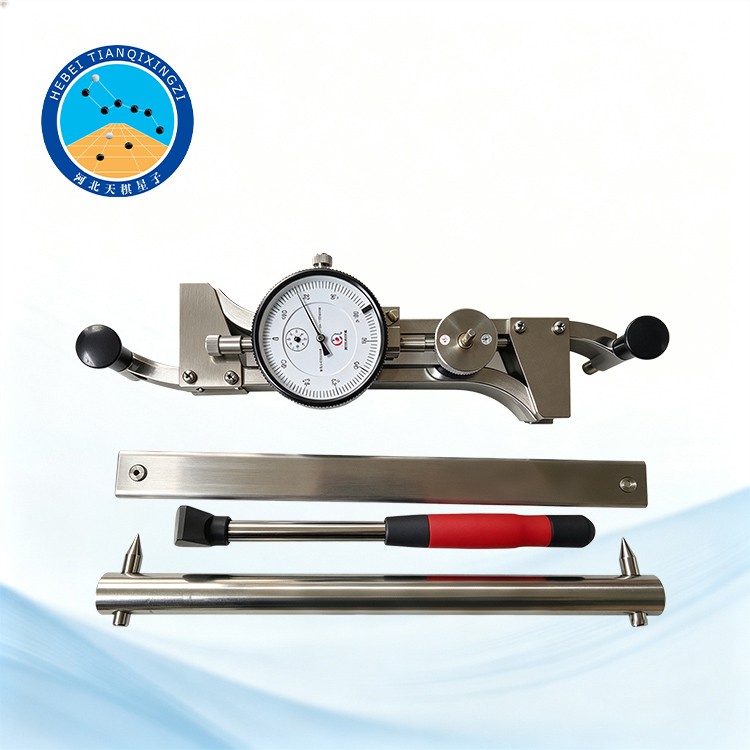

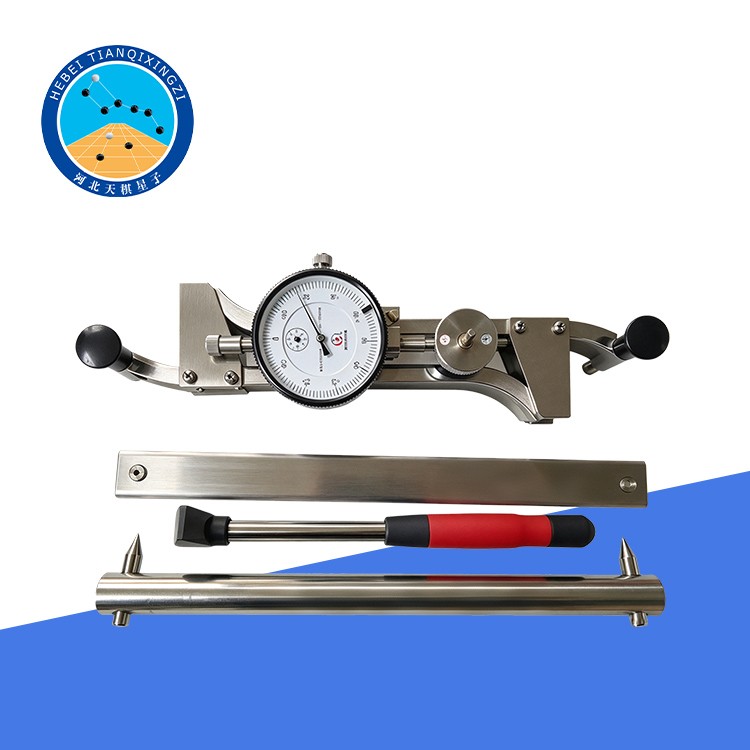

The TDSH-VB1 Handheld Concrete Strain Gauge, also known as a Concrete Micro-Deformation Measuring Instrument, is designed to measure long-term deformation in various building structures. It can be used to monitor deformation during the fabrication of structural components as well as to observe structural deformation during testing.

The TDSH-VB1 features a simple and lightweight design, a wide measuring range, and convenient portability. It is designed to provide reliable measurements under changing environmental conditions. Therefore, it is particularly suitable for field and on-site structural deformation measurements, as well as experimental research and engineering testing in research institutions, design organizations, construction companies, and laboratories.

Reference Standards: ASTM C490/C490M, BS 1881-206

II. Technical Specifications

1. Gauge length: 250 mm

2. Displacement measurement range: ±5 mm

3. Minimum scale division: 40 με

4. Coefficient of linear thermal expansion of the standard gauge bar (α): 1.5 × 10⁻⁶/°C

5. Dimensions: 280 × 71 × 75 mm

6. Weight: Approx. 0.8 kg

III. Precautions for Use

1. Avoid applying excessive pulling force, pressure, or impact during use to prevent damage to the displacement gauge or the connecting leaf spring.

2. To minimize error, do not change the operator or alter the testing direction during the test procedure.

3. During the test, avoid touching the instrument's metal frame with your hands; instead, hold the handle to reduce errors caused by the influence of body temperature.

4. Repeat the measurement N times to minimize error.

IV. Care and Maintenance

1. Protect the instrument's pointed probe to prevent breakage.

2. Keep the instrument in its case during use to maintain its sensitivity.

3. After the experiment, wipe the instrument clean with a soft cloth and engage the locking hook to prevent damage to the spring blade.

4. Do not disassemble the instrument arbitrarily; handle it with care when moving or storing it.

V. Applications

The TDSH-VB1 Handheld Concrete Strain Gauge is suitable for measuring small deformation and strain in concrete and other building structures. It can be used for structural testing, long-term deformation monitoring, laboratory research, and field measurements.

Typical applications include:

Concrete structural deformation measurement;

Long-term deformation monitoring of building structures;

Concrete strain measurement;

Structural component testing;

Field and on-site deformation measurement;

Laboratory research and engineering testing;

Monitoring deformation caused by environmental changes;

Research on concrete and other construction materials.

VI. Product Features

The TDSH-VB1 is a mechanical, handheld strain measurement instrument designed for convenient and repeatable measurement of small structural deformations. Its compact design makes it easy to carry between laboratory and field testing locations.

Key features include:

•250 mm gauge length for structural deformation measurement

• ±5 mm displacement measurement range

• Lightweight design, weighing approximately 0.8 kg

• Simple operation and convenient handling

• Suitable for laboratory, field, and on-site testing

• Designed for long-term deformation and micro-strain measurements

• Suitable for concrete structures and other building components
