This equipment can be used to perform the standard Cantabro abrasion test, which is applied to determine the minimum asphalt content required for surface course mixtures such as Stone Mastic Asphalt (SMA), open-graded porous asphalt mixtures, skid-resistant surface mixtures, asphalt macadam, or emulsified asphalt macadam mixtures.

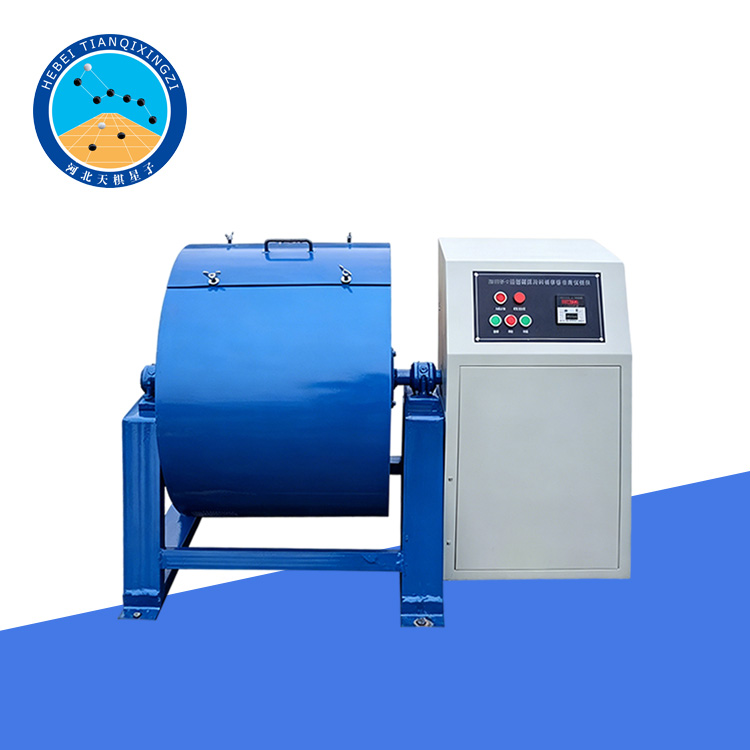

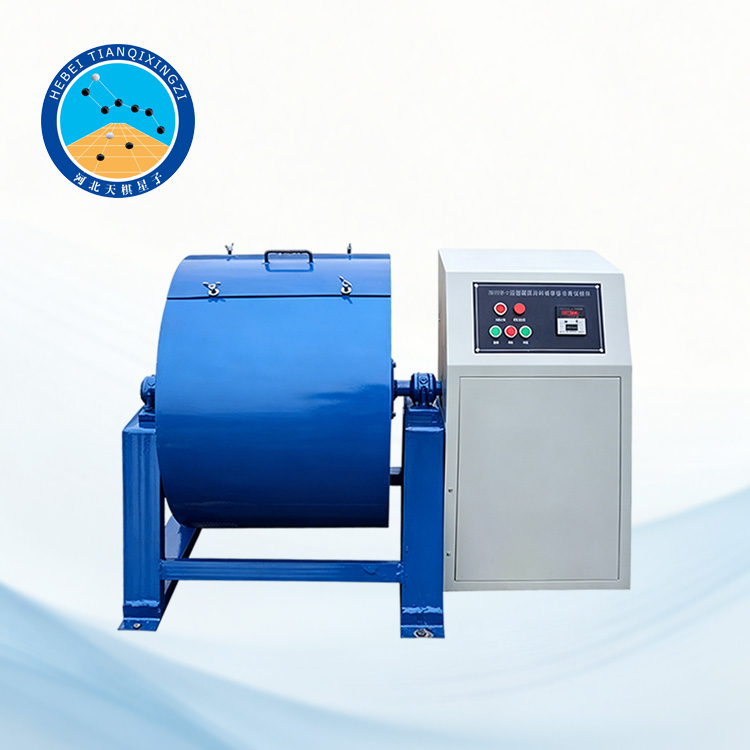

Cantabro Abrasion Tester for Asphalt Mixtures

Model:TD733-1

I. Product Introduction

The TD733-1 Asphalt Mixture Cantabro Abrasion Tester is a professional testing instrument designed and manufactured by Hebei Tianqixingzi Inspection Equipment Co., Ltd. in accordance with the JTG 3410 (T0733) specification.

This equipment is mainly used to evaluate the degree of aggregate loss and raveling of asphalt mixtures under traffic loading conditions when the asphalt content is insufficient or the bonding performance is poor, thereby assessing the mixture’s resistance to raveling and structural stability.

Reference or applicable standards:

JTG 3410, EN 12697-17, AASHTO TP 108, NLT-362

II. Equipment Configuration

1. Main Unit

TD733-1 Asphalt Mixture Cantabro Abrasion Tester, 1 set

2. Technical Parameters

Drum dimensions: inner diameter × inner length 710±5 mm × 510±5 mm

Rotation speed: 30–33 r/min

Counter: 4-digit or 5-digit automatic digital display, programmable

Overall dimensions: approximately 1320 × 980 × 1050 mm

Power supply: 380 V

Power: 2.2 kW

III. Main Features

Automated control system, easy to operate;

Digital counter, with preset test cycle count;

Simulates real traffic load abrasion environment;

Stable structure, smooth operation, and low noise;

Suitable for various asphalt mixtures such as SMA and OGFC;

Meets the requirements of various domestic and international testing standards.

IV. Scope of Application

This equipment is widely used in:

Quality testing of asphalt mixtures for highways;

Municipal road engineering laboratories;

Performance evaluation of asphalt materials for airport runways;

Materials research in scientific research institutes;

Traffic engineering quality control centers.

V. Recommended Related Equipment

Asphalt Mixture Rutting Tester;

Marshall Stability Tester;

Asphalt Softening Point Tester;

Asphalt Penetration Tester;

Asphalt Mixture Low-Temperature Performance Testing Equipment.
