The Marshall Stability Test Fixture is designed for use in both standard Marshall stability tests and immersed Marshall stability tests; it serves as a critical accessory in the design of asphalt mixture mixes and in the quality control testing of asphalt pavement construction. When used in conjunction with Marshall testing equipment, this fixture enables an accurate assessment of the stability performance of asphalt mixtures under applied loads.

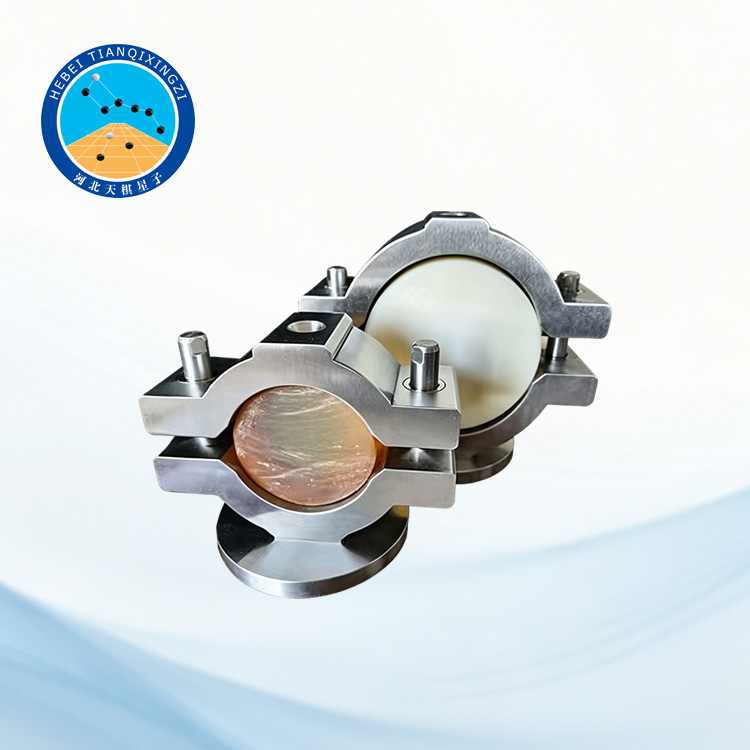

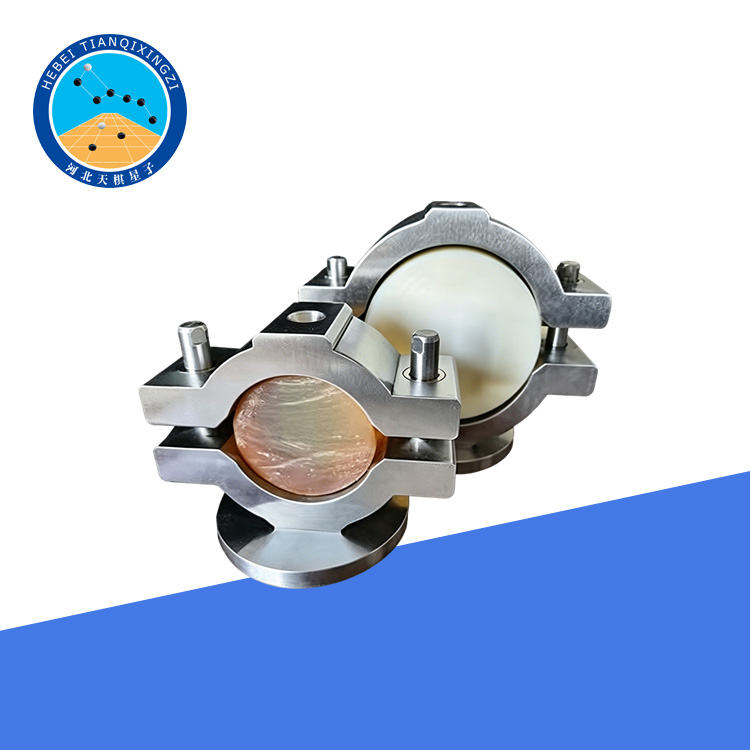

Asphalt Mixture Marshall Stability Test Fixture

Model:TD709P-JJ

I. Product Introduction

The Marshall Stability Test Fixture is also suitable for use in immersed Marshall tests and vacuum-saturation Marshall tests. It is utilized to evaluate the resistance of asphalt mixtures to stripping under conditions of water damage, thereby assessing the water stability of the mixture and verifying the rationality and reliability of the mix design.

This product can be integrated with multi-functional road material testing machines and is widely employed in highway engineering laboratories, research institutions, and quality inspection agencies.

II. Product Features

Manufactured using precision machining, featuring a stable structure and high testing accuracy;

Simple structural design ensures convenient installation and high operational efficiency;

Equipped with a dedicated mounting slot for displacement sensors, facilitating the precise acquisition of test data;

Fabricated from high-strength stainless steel, offering excellent corrosion resistance and rust-proof properties;

Boasts a long service life, making it suitable for high-frequency testing environments;

Highly compatible with standard Marshall stability testing systems.

III. Technical Parameters

Overall Dimensions: 270 mm (H) × 260 mm (W) × 150 mm (Dia.)

Total Weight: 18 kg

Material: High-strength stainless steel

Applicable Tests: Marshall Stability Test, Immersion Marshall Test

IV. Applications

Asphalt Mix Design;

Road Construction Quality Testing;

Evaluation of Water Stability and Anti-Stripping Performance;

Highway Engineering Laboratories and Scientific Research Testing.
