The Asphalt Multiple Stress Creep and Recovery Tester (MSCR Tester) is a high-precision rheological testing instrument used to evaluate the high-temperature performance and rutting resistance of asphalt binders. It is widely used in highway engineering, airport runways, research institutes, and asphalt material quality testing.

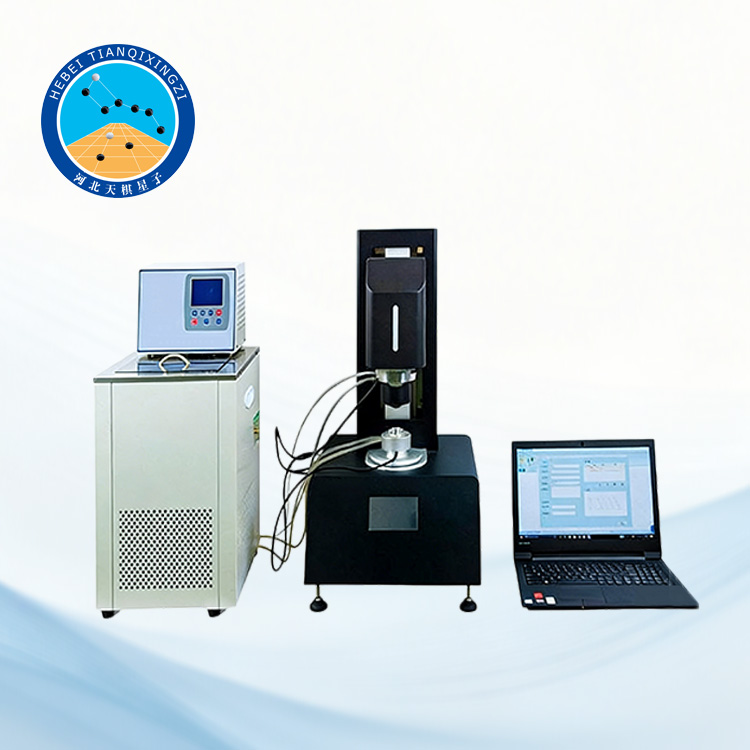

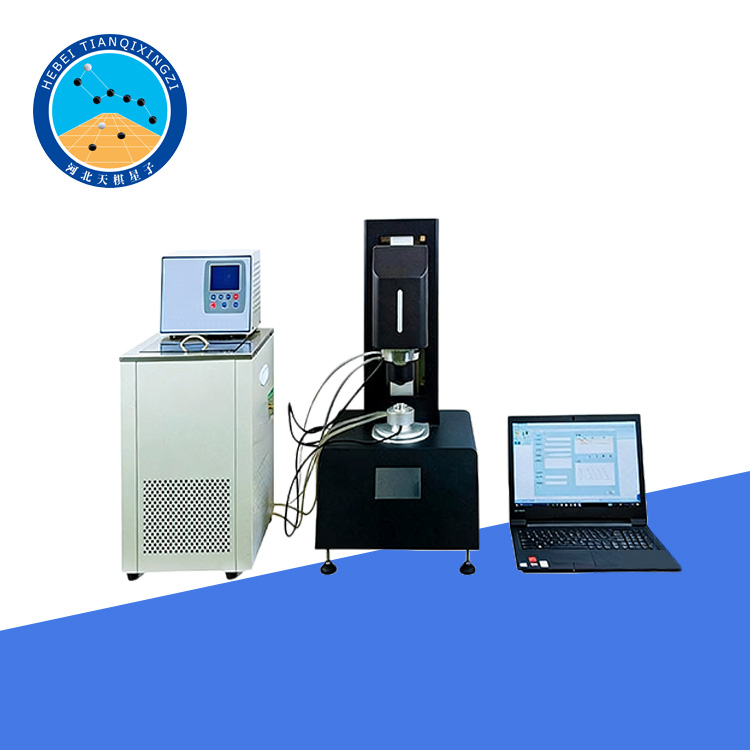

Asphalt MSCR Tester Multiple Stress Creep and Recovery

Model:TD628-1

I. Standards Met:

JTG E20-2011 T0628, ASTM P246, AASHTO T315-09

II. Application Industries:

Asphalt, coatings, food, cosmetics, polymers, adhesives, pharmaceuticals, composite materials, etc.

III. Main Applications:

Used to study the rheological properties of asphalt, such as conducting SHRP (Strategic Highway Research Program) grading measurements, multi-stress creep measurements, strain scanning measurements, and viscosity measurements. It can be used to measure base asphalt, polymer-modified asphalt, rubber powder-modified asphalt, and aged asphalt after pressure aging and rotary film oven treatment. By measuring the dynamic shear modulus G* and phase angle s of asphalt, it evaluates the viscous (non-recoverable) and elastic (recoverable) properties of aged and unaged asphalt in the temperature range of 5-85℃, predicting its resistance to rutting and fatigue cracking.

IV. Main Configuration:

1. Rheometer Main Unit: One unit

2. Temperature Control (Circulation) System: One unit

3. Asphalt-Specific Clamp (8mm): One set

4. Asphalt-Specific Clamp (25mm): One set

5. Special Tools: One set

6. Silicone test mold (8 mm) – 1 piece

7. Silicone test mold (25 mm) – 1 piece

8. Laptop computer – 1 unit

9. Dedicated asphalt testing software – 1 set (pre-installed)

10. Network cable – 1 piece

Loading method: Air bearing

Bearing: Porous carbon magnetic thrust bearing.

IV. Technical Parameters:

1. Speed Range: 0.01-2850 r/min

2. Angular Velocity Range: 0.01-300 rad/s

3. Deflection Angular Resolution: 10⁻⁴ rad

4. Oscillation Frequency: 0.1-10 Hz

5. Torque Range: 0.001-200 mNm

6. Torque Resolution: 0.001 mNm

7. Normal force range: 0.01-50N

8. Normal force resolution: 1mN

9. Control method: Stress/strain

10. Temperature range: 5-85℃

11. Temperature resolution: 0.01℃

12. Temperature control accuracy: +/- 0.1℃

13. Measuring system: 1 pair of 25mm test plates and 1 pair of 8mm test plates

14. Dimensions: 400*415*670 mm

15. Weight: Approximately 20kg
