The Concrete Lateral Expansion Testing Chamber is designed to test the lateral expansion of fresh cement concrete mixtures. It provides a controlled test space for evaluating lateral deformation and expansion behavior, making it suitable for concrete laboratories, quality control, mix design, and construction material testing.

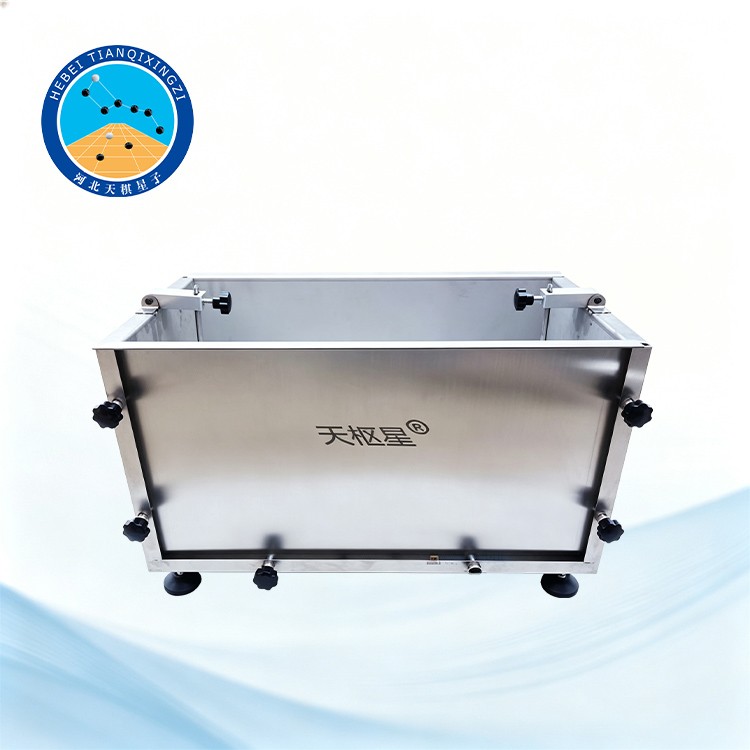

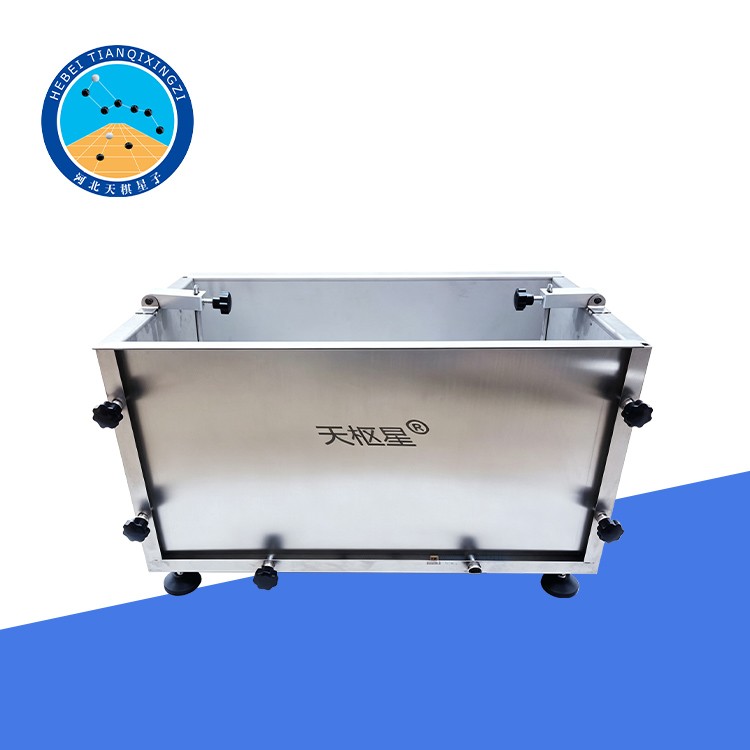

Concrete Lateral Expansion Testing Chamber

Model: TD536-1

I. Product Introduction

The Concrete Lateral Expansion Testing Chamber is used to test the lateral expansion of fresh cement concrete mixtures. It complies with the requirements of JTG 3420-2020, Test Methods of Cement and Concrete for Highway Engineering.

II. Technical Specifications

1. Internal Dimensions: 550 mm × 300 mm × 300 mm

2. Net Weight: 12.8 kg

III. Product Features

1. Stable test chamber structure: Provides a defined internal space for testing the lateral expansion behavior of fresh cement concrete mixtures.

2. Suitable test dimensions: The 550 mm × 300 mm × 300 mm internal dimensions provide sufficient space for the specified concrete mixture testing procedure.

3. Simple and practical design: The chamber is easy to operate and suitable for routine laboratory testing.

4. Durable construction: Designed for repeated use in concrete and construction material laboratories.

5. Easy to clean: The internal surfaces can be cleaned after testing, helping maintain the equipment in good condition for subsequent tests.

IV. Application

The Concrete Lateral Expansion Testing Chamber is suitable for laboratories involved in fresh concrete testing, concrete mix design, construction material research, and quality control. It can be used to study the lateral expansion and deformation characteristics of fresh cement concrete mixtures under specified test conditions.

Typical applications include:

Fresh concrete performance testing;

Concrete mix design and development;

Construction material research;

Concrete quality control;

Laboratory testing of cement concrete mixtures;

Research institutions and university laboratories.

V. Testing Purpose

The lateral expansion test provides information about the deformation and expansion characteristics of fresh concrete mixtures. The test results can be used as a reference when evaluating concrete mixture properties and comparing different mix designs or material combinations.

VI. Product Configuration

The TD536-1 Concrete Lateral Expansion Testing Chamber can be supplied as a dedicated testing chamber for fresh cement concrete mixtures. Its compact structure and relatively light weight make it convenient for laboratory installation, operation, cleaning, and storage.
